SuperAir Acoustic Insulated Aluminium Flexible Duct, SONO

Overview

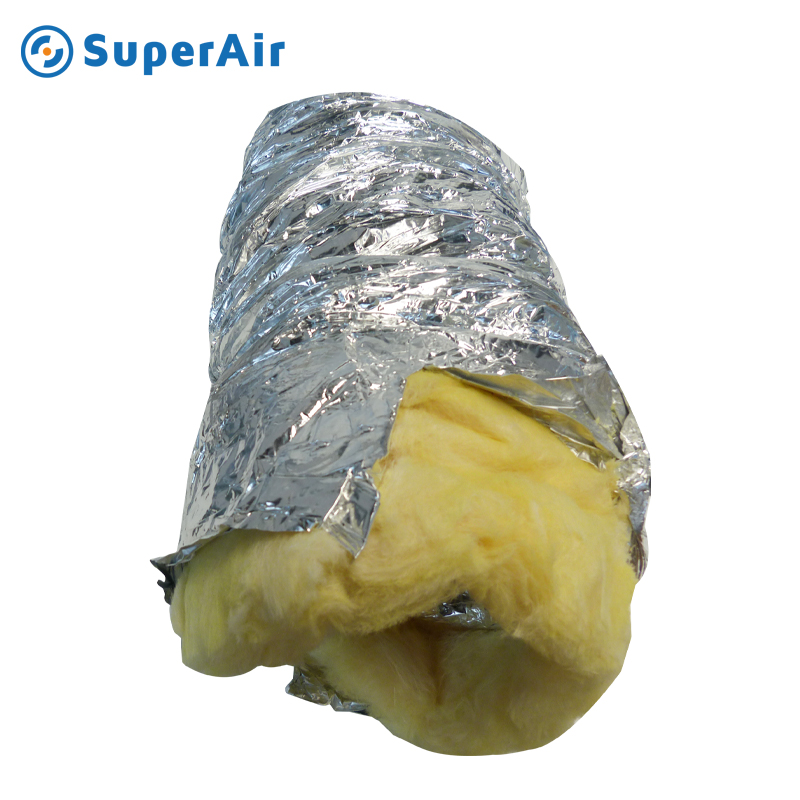

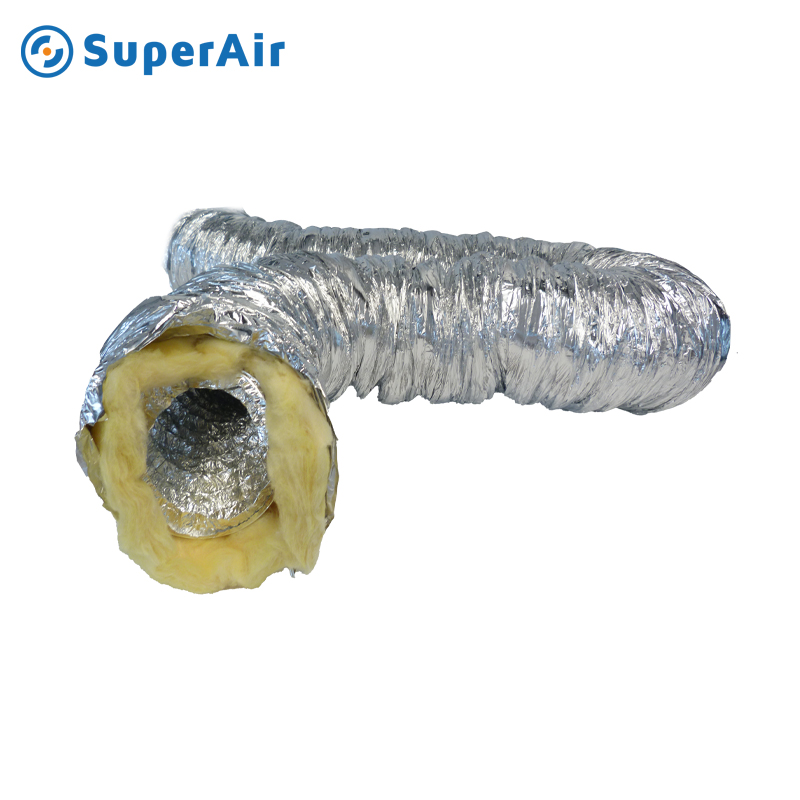

SuperAir Acoustic Insulated Aluminum Flexible Duct (SONO) is a duct that has high-performance that is designed to minimize noise and enhancing the airflow of ventilation systems. It’s constructed with an aluminium inner layer, that is surrounded by soundproofing insulation in order to reduce noise created through HVAC equipment. Its flexible design makes it possible for simple installation in tight areas, which makes it suitable for both residential and commercial applications. This duct is an ideal solution for areas where noise reduction is paramount without compromising efficiency of airflow.

Main Features

• Acoustic Insulation The duct is fitted with a soundproofing system that is advanced to block out noise which makes it suitable for noisy environments.
• High-Quality Aluminium Construction The layer that is the innermost is constructed from strong aluminium which is resistant to corrosion that ensures long-lasting performance.
• Flexibility The duct is able to bend and wrap around obstacles, making it ideal for spaces that are tight or difficult to access in which rigid ducts aren’t appropriate.
• Thermal Insulation The insulation layer also offers thermal insulation, helping maintain the optimal temperature within the ductwork and preventing loss of heat or get.
• Flame Resistant It is in compliance with the regulations for fire safety, giving assurance of safety for usage in different environments.
• Different Sizes Are Available Available in a variety of sizes and diameters to meet the various requirements of your system.

Installation

1. Measure the space Take a measurement of the length of your ductwork. Cut the duct into lengths as needed.
2. Connect the system Connect the flexible pipe with HVAC components, such as air handlers and fans together fasteners or duct clamps.
3. Seal Joints Utilize aluminium foil sealant or even duct tape in order to assure an airtight joint and stop leaks.
4. Help the Duct Make sure the duct is supported throughout its length to ensure that it does not sag or compress which can hinder the flow of air.
5. Test System Performance Test the airflow in order to verify the excellent operation and reduce noise.

Product Details

• Product Dimensions Available in different sizes (100mm 150mm, 200mm etc.).) and lengths
• Item Model Number SONO2.0, SONO3.0,SONO6.0
• Date First Available Posted at the day of listing
• Manufacture SuperAir

Product Description

Acoustic Flexible Duct Insulated from Aluminium (SONO) by SuperAir is a multi-functional and highly efficient ducting system that is designed to minimize the noise of HVAC systems.

• Item Type Acoustic Insulated Flexible Duct
• Material Aluminium Inner Layer, Acoustic Insulation Layer
• Install Method Attach using clamps or fasteners, seal using aluminium foil or the duct sealant
• Grade Industrial and Residential HVAC Systems
• How to Utilize It is used by HVAC units to increase the flow of air while minimizing the transmission of sound

Specifications

• Diameter Available in a range of 100mm-500mm
• Length Available in 3m, 5m and 10m sections.
• The thickness of the material Aluminium layer: 0.15mm; Insulation: 25mm
• Sound Reduction up as 15 dB(A)
• Thermal Resistance -30degC to +140degC
• Rated for Fire Meets EN 13501-1 standards for fire resistance

FAQs

What is it that makes this pipe “acoustic”?

The duct comes by an extra soundproofing layer of insulation designed to block out the noise commonly related to HVAC systems.

Do I have to use the duct in commercial and residential heating and cooling systems?

Yes it is appropriate to be used in commercial and residential settings in particular where noise-control is needed.

Do you think the duct is fire-proof?

It is true that the pipe is in compliance with standards for fire safety and is therefore safe for use in places which require fire-resistant materials.

What size formats are available?

The duct comes in sizes ranging between 100mm and 500mm, as well as lengths of three meters, 5, and 10m.

What is the desirable way to connect this duct within a narrow area?

Its flexible design lets users to bend and move the duct to avoid obstacles. Simply warrant that it’s supported properly and sealed for maximum performance.

Note

To ensure desirable results, assure the duct is not compressed too much when it is installed, and make sure you ensure that the duct is sealed properly to prevent air leakage.
