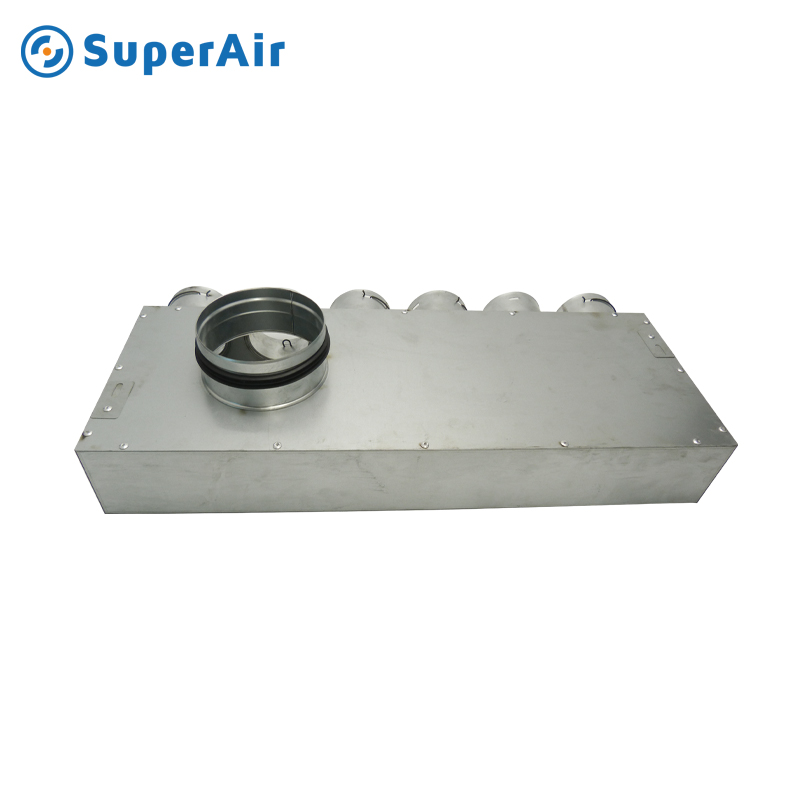

SuperAir Adjustable Ventilation Manifold Distribution Box

Overview

SuperAir Adjustable Ventilation Manifold is an integral part of HVAC systems that are designed to control airflow effectively. This manifold provides precise control of the distribution of air across multiple ducts, which ensures an even distribution of air for commercial, residential, and industrial areas. As a leading the field of HVAC, SuperAir ensures that their manifolds meet the highest standards in terms of performance and durability which makes it appropriate for all types of ventilation needs.

Main Features

• Flexible Airflow Control The manifold permits easy adjustment of airflow, which helps to distribute air evenly across various ducts.
• Sturdy Construction Made of high-quality materials, this manifold has been constructed to stand up to the effects of moisture, wear, as well as environmental influences.
• Flexible design consistent with a vast array of HVAC systems, which includes both cooling and heating applications.
• Simple to install Pre-drilled mounting holes and a simple design make installation simple and quick.
• Corrosion Resistance It is coated with a resistant to rust, which ensures durability even in extreme humidity conditions.

Installation

1. Make up your HVAC System Ensure that the manifold is compatible with the duct system you have installed and ensure that the duct sizes are accurately measured.
2. Mount Manifold Secure the manifold to the duct system with screws and hardware for mounting.
3. Join the Ducts Connect each duct to the appropriate port, making sure to have that the seals are airtight to warrant optimal airflow.
4. Adjust Airflow Once installed, you can adjust the airflow to allow for a balanced circulation throughout the space.

Product Details

• Product Dimensions 6×75-125, 6×75-160, 10×75-125, 10×75-160, Custom sizes are available.
• Item Model Number DB-XXX
• Date First Available Posted at the day of listing
• Manufacture SuperAir

Product Description

Variable Ventilation Manifold created by SuperAir is designed specifically for HVAC equipment where accurate control of airflow is vital.

• Item Type Adjustable Ventilation Manifold
• Materials Galvanized steel
• Model DB-XXX
• Install Methods Wall or ceiling-mounted with brackets and screws
• Grading Commercial and industrial-grade
• How to Utilize Install as part of a ductwork system that will control air distribution in HVAC systems.

Specifications

• Dimensions 6×75-125, or customized size
• Weight 7.5 kg
• Materials Galvanized steel with the rust-resistant coating
• number of ports four ports with adjustable settings
• Use Balancing airflow across many ducts in HVAC systems

FAQs

What systems are the Adjustable Ventilation Manifold compatible with?

The manifold can be used with a wide range of commercial, residential HVAC systems that require precise airflow control.

How many ducts do I have to attach to my manifold?

This model is able to accommodate up to 4 ducts however, other sizes are also available to suit different requirements for the system.

 Does the manifold appropriate for both cooling and heating applications?

Yes this Adjustable Ventilation Manifold appropriate for heating as well as cooling HVAC systems.

 How can I alter the airflow?

Every port of the manifold has an adjustable port which allows you to regulate the amount of air flowing throughout each pipe.

 Is skillful installation highly recommended?

Although the manifold is simple to put in place, skillful installation ensures optimal performance and compatibility with the system.

Note

Check that the manifold you are installing can be used with an current HVAC system prior to installation. Career-oriented installations are recommended to ensure desirable performance.
