SuperAir AC Definite Purpose Contactors Three Poles

Overview

SuperAir Air Conditioner Definite Purpose Contactors Three Poles  are crucial components designed to regulate the power supply to AC units as well as the other HVAC equipment. Constructed for high-quality and durability the 3-pole contacts can be appropriate for different applications, such as commercial and residential cooling systems. SuperAir is dedicated to offering top-quality electrical solutions that guarantee the highest performance and durability for all of your HVAC requirements.

Main Features

• Built to Last Built with top-quality materials that can withstand tough conditions in the environment and warrant durability for a long time.
• Three-Pole Technology Allows for efficient control of three-phase and single-phase AC systems.
• Simple Installation Created for easy wiring installation, it is compatible with all standard electrical systems.
• Large Switching Capacity It is capable of handling heavy electrical loads, it is perfect for HVAC applications.
• Built-in Security qualities Includes thermal overload protection to protect against damages caused by excessive heat.

Installation

The installation of the AC Definite Purpose Contactors Three Poles is simple and user-friendly. Follow the installation guidelines provided with the product, making sure that the electrical connections are safe. It is suggested that an experienced electrician complete the installation in order to assure that it is compliant the local electric codes as well as safety standards.

Product Details

• Dimensions of the Product 5 x 4 3 inches
• Item Model Number ACP-2023
• Date First Available Posted at the date of listing.
• Manufacture SuperAir

Product Description

The SuperAir Air Conditioner Definite Purpose Contactor is a sturdy and reliable option for managing your cooling systems.

• Item Type Definite Purpose Contactor
• Fabric Heavy-duty plastic housing with copper contacts
• Model ACP-2023
• Install Method The panel is mounted together electrical connection of standard.
• Grading Industrial-grade electrical component
• How to Utilize Connect the contactor to the AC unit’s power supply and control circuits in accordance with the wiring diagram within the instruction manual. Be sure that the connections are safe and well-insulated to protect yourself from electrical dangers.

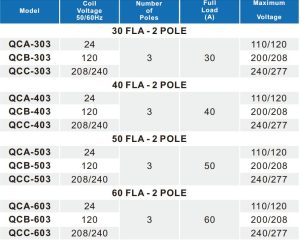

Specifications

• Voltage Rating 12V and 24V and 240V AC options are available
• The current rating is 30-A-60A (varies according to the model)
• Numerical Poles Three poles
• Frequency 50/60 Hz
• Operating Temperature Range -30degC to 60degC
• Accreditation UL Listed, CE Certified

FAQs

What is the purpose of the Air Conditioner Definite Purpose Contactor?

The Air Conditioner Definite Purpose Contactor is used to control the electrical supply to air conditioning units and other HVAC equipment. It acts as a switch that opens and closes to manage the power flow, ensuring safe and efficient operation of the system.

 How do I install the contactor?

Installation is straightforward. First, ensure the power supply is disconnected. Then, follow the wiring diagram included in the product manual to connect the contactor to your AC unit’s power supply and control circuit. It’s recommended to consult a qualified electrician for installation to ensure safety and compliance with local electrical codes.

What should I do if the contactor fails to operate?

If the contactor fails to operate, first check for any visible signs of damage or wear. Ensure that all electrical connections are secure and that the power supply is functioning correctly. If it still does not work, the contactor may need to be replaced. Refer to the user manual for troubleshooting steps, or consult a professional if you’re unsure.

How can I ensure the longevity of the contactor?

To ensure the longevity of your Air Conditioner Definite Purpose Contactor, maintain proper operating conditions and avoid exceeding the specified voltage and current ratings. Regularly inspect the contactor and wiring for any signs of wear or damage. Keeping the unit clean and free from dust can also help extend its lifespan.

Is this contactor compatible with all types of air conditioning systems?

The SuperAir Air AC Definite Purpose Contactors Three Poles is designed for a wide range of HVAC applications; however, compatibility may vary based on specific system requirements. Always check the voltage and current ratings to ensure the contactor matches your air conditioning unit’s specifications before installation. If in doubt, consult the manufacturer’s guidelines or a qualified electrician.

Note

Before installation, confirm the compatibility of your cooling system. Regular inspections and maintenance are suggested to warrant maximum performance and to avoid any electrical problems.
