Washing Machine Drain Pump 5859EN1006N

Overview

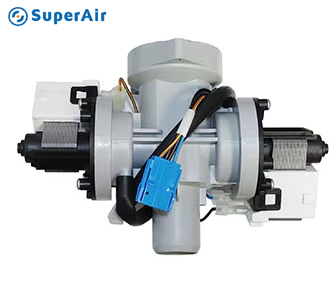

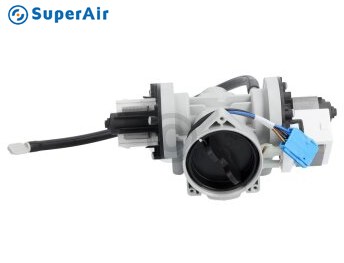

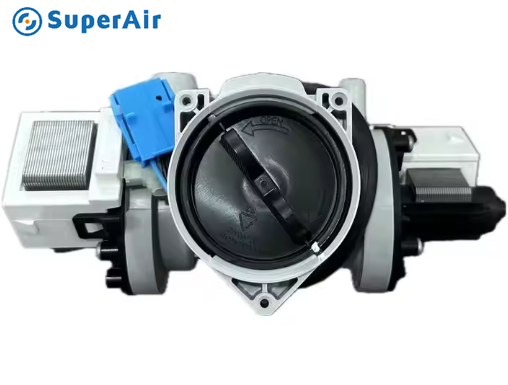

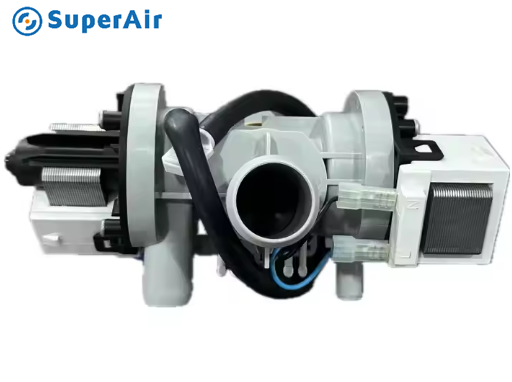

This is the 5859EN1006N model dual-pump drainage pump assembly produced by LEILI for LG’s drum washing machine. It has both drainage and water circulation functions inside the drum, and integrates a wire debris filter and emergency drainage structure. It operates at a rated voltage of 220-240V and a power of 35W. It is commonly used to solve drainage problems, noise issues or leakage problems.

Main Features

• Dual pump body integrated design: combines drainage and circulation pumps into one unit, meeting the dual process requirements of LG drum washing machines for washing and drainage.
• Original factory specifications: Model 5859EN1006N (LEILI BPX2 series), rated voltage 220-240V/50Hz, power 35W.
• Wire shavings filtration + emergency drainage structure: equipped with a filter compartment and emergency drainage pipe, preventing blockages and enabling manual drainage in case of power failure.
• Special adapter interface: features a foolproof electrical plug that matches LG model circuits, requiring no additional modifications.

Installation

• Power-off drainage: Disconnect the power supply and close the water valve. Use the emergency pipe to drain all the water in the bucket.
• Remove the old pump: Turn the washing machine upside down, unplug it, loosen the water pipe clamp, and remove the old pump.
• Install the new pump: Position the new pump accurately, connect the water pipe and the plug.
• Reset and test: Put the filter back in place, turn on the drainage program with power on, and check for any leaks and smooth drainage.

Product Details

• Model: LEILI 5859EN1006N
• Compatible models: Specifically designed for LG drum washing machines, compatible with various models of the WD series
• Rated voltage: 220-240V / 50Hz
• Rated power: 35W
• Manufacture: SuperAir

Specifications

• Core structure: Dual pump body integrated design (drainage pump + circulation pump), equipped with a line debris filter box and emergency drainage pipe
• Hot-selling regions: Mainly in China, Southeast Asia, and European markets, suitable for LG’s global model after-sales needs
• Normal service life: Approximately 3-5 years under normal conditions, depending on water quality and usage frequency
• Product warranty period: 12-month warranty
• Interface specification: Special electrical plug with anti-misinsertion design, can be directly plugged without additional modification

FAQs

Note

• Before installation, the power supply and water supply must be cut off, and the accumulated water in the bucket should be drained through the emergency drainage pipe to prevent electric shock or water leakage.
• During installation, the interface markings must be aligned. It is strictly prohibited to connect the wrong electrical plugs; otherwise, the pump body motor may be burned out.
• After replacement, conduct a single drainage test run first to confirm that there is no water leakage or abnormal sounds before normal use.
• Regularly clean the filter chamber to prevent wire shavings and debris from blocking the pump impeller, thereby extending the service life.
