SuperAir Washing Machine Heating Tube AEG33121513

Overview

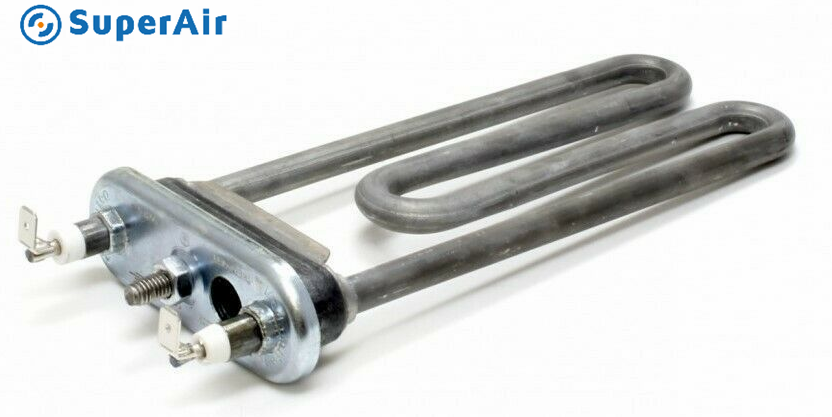

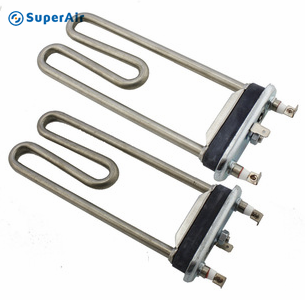

AEG33121513 is the original double U-shaped heating tube of LG drum washing machine, with a rated power of 1600W. It comes with a temperature control probe and a thermal fuse. This accessory is compatible with multiple LG washing and drying combination machines, and can also be replaced or swapped with multiple numbered accessories. When replacing, it is necessary to cut off the power supply and keep it dry. Most resistance abnormalities are caused by the damage of the heating tube.

Main Features

• Rated power: 1600W, compatible with 220/230V voltage
• Double U-shaped structure, integrating temperature control probe and thermal fuse
• Made of 304 stainless steel, corrosion-resistant and long-lasting
• Original factory parts, interchangeable with multiple models of the same specification
• Installation compatible with LG’s various drum washing machines and wash-dry combination machines

Installation

• Disconnect the power supply of the washing machine, close the water inlet valve, and drain the remaining water in the bucket.
• Remove the bottom or rear protective cover of the machine, find the wiring terminals of the heating tube and unplug the wiring bundle.
• Loosen the fixing screws, remove the old heating tube and the sealing ring.
• Install the new heating tube, align the sealing ring to prevent leakage, and tighten the screws for fixation.
• Reinsert the wiring terminals, restore the cover plate, and test the heating function by powering on to ensure it is working properly.

Product Details

• Model: AEG33121513.
• Specification: Dual U-shaped heating tubes, equipped with temperature control probe + thermal fuse.
• Voltage: 220V/230V universal.
• Power: 1600W.
• Material: 304 stainless steel, corrosion-resistant and anti-scaling.
• Manufacture: SuperAir

Specifications

• Size: Flange approximately 70×17mm, heating zone approximately 175mm.
• Compatible models: Various LG drum washing machines / washing and drying machines (such as WD, F, E series).
• Hot-selling regions: China, Europe, Southeast Asia.
• Service life: Approximately 3–5 years under normal conditions.

FAQs

Note

• Before installation, make sure to cut off the power supply and drain the accumulated water to avoid the risks of electric shock and water leakage.
• When installing, ensure that the sealing ring is placed flatly and the tightening force is moderate to prevent water seepage or deformation of the pipe body.
• After installation, check if the accessory model matches the machine model. Do not use non-compatible machines.
• In areas with poor water quality, it is recommended to clean the scale regularly to extend the service life of the heating tube.
