Round Swirl Ceiling Diffusers

Round Swirl Ceiling Diffusers, SD-CR is the SuperAir plastic diffuser& grille is designed for ceiling exhaust or supply air applications. It is made from impact-resistant UV-stabilised ABS. Suitable with a large range of wall-mounted and in-line fans. Adjustable concentric cone -Achieves better air distribution.

Product Details:

Round Swirl Ceiling Diffusers

1.Product Introduction

The high induction of the Round Swirl Ceiling Diffusers, SD-CR jet produced by the louvre layout reduces the end velocity of jet and the temperature difference very quickly. This allows the air to be blown into the room free from draughts even under extreme conditions. The air jet direction can also be adjusted later, either manually or motor-driven, from horizontal to vertical. The free cross-section is the same in all louvre positions, so that pressure loss and volume level do not change when the throw pattern is adjusted.

2.Product Parameter (Specification)

Swirl Ceiling Diffuser, SD-CR

• MateriakSPCC

• Color: RAL9010& RAL9016

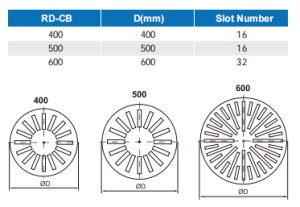

SD-CR D(mm) Slot Numbers
400 400 16
500 500 24
600 600 32



3.Product Feature And Application

Supply air and return air installations in amenity rooms such as offices, shopping centres, restaurants, cinemas or clean rooms. They can be used for heating and cooling. Mounting height from 2.6 – 4 m, with motorised adjustable throw pattern of up to 6 m.

4.Product Details
