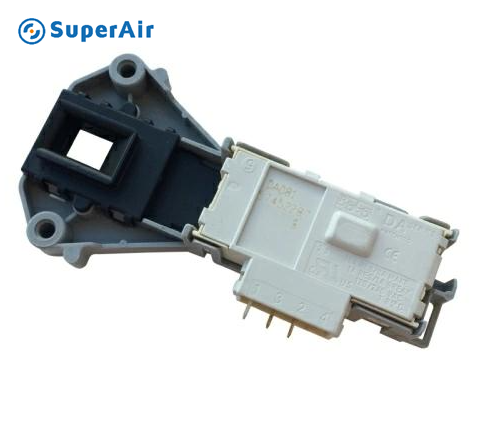

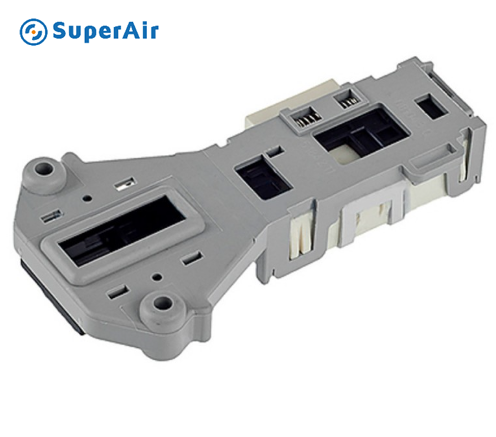

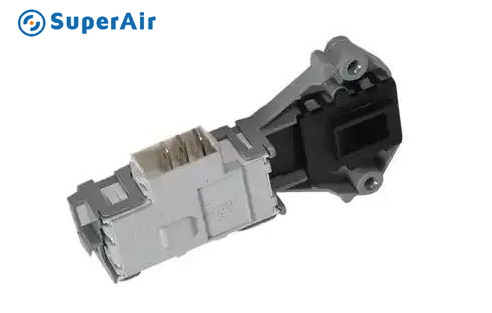

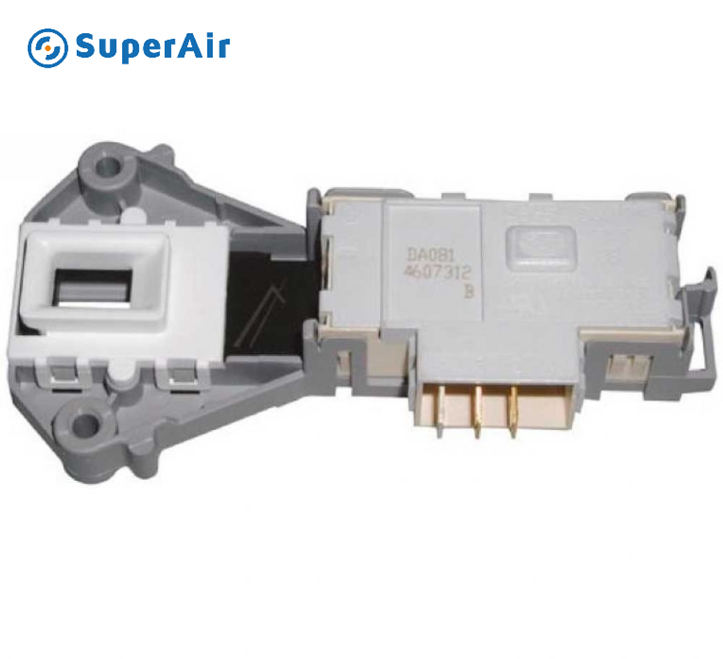

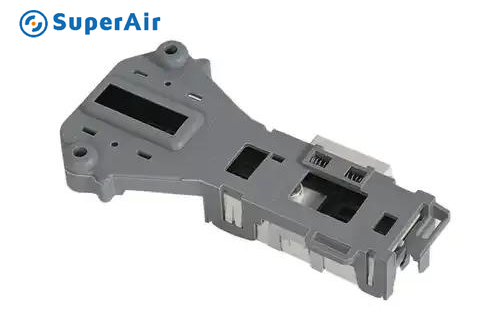

Washing machine Door Lock 6601ER1005A

Overview

The 6601ER1005A provided by SuperAir is an electronic door interlock switch specifically for LG drum washing machines. It adopts a standard three-pin interface and is compatible with 120/240V voltages. The product is equipped with self-locking function during operation and delayed unlocking after program completion, effectively eliminating potential safety hazards such as water leakage and accidental touch. The shell is treated for sealing and moisture prevention, enabling it to adapt to the humid conditions of the washing machine for a long time. The installation holes, terminals, and wiring are fully compatible with the original factory accessories, making the installation and disassembly simple. It is compatible with multiple LG drum models and is an excellent replacement part for door lock failures.

Main Features

• Excellent Safety Performance：Auto-lock during operation and delayed unlock after cycle ends, effectively prevent accidental opening and water leakage.
• Wide Compatibility & Easy Installation：Standard 3-pin connector, universal for 120/240V. Perfect match with original mounting holes, plug and play.
• Moisture-proof & Durable：Sealed housing adapts to humid working environment, stable performance and long service life.

Installation

• Remove the old door lock: Open the door, unscrew 2 fixing screws on the door frame, unplug the wire connector and take out the old part.
• Position the new lock: Align SuperAir 6601ER1005A with mounting holes and place it in the slot.
• Connect wires & fasten: Plug in the 3-pin connector firmly, then tighten the screws.
• Test operation: Close the door and power on. Check if locking and delayed unlocking function work normally.

Product Details

• Model Number: 6601ER1005A
• Dimensions: 100mm × 20mm × 55mm
• Connector: 3-pin terminal
• Rated Voltage: 120/240V universal
• Manufacture SuperAir

Product Description

• Item Type Door lock
• Model 6601ER1005A,
• Standard 3-pin connector, 120/240V universal voltage
• Grade Residential and Commercial
• How to Utilize Install it correctly, connect the wire and test normal locking & unlocking function.

Specifications

• Material: Flame-retardant & moisture-proof plastic
• Service Life: More than 5 years under normal use
• Warranty: 12 months
• Application: Replacement part for LG front load washing machines

FAQs

• Q: Which washing machines does this lock fit?

  A: It is a replacement part for most LG front load washing machines.

• Q: What is the voltage rating?

  A: 120/240V universal, suitable for global use.

• Q: Is it hard to install?

  A: No. Just plug in the connector and fix with screws, plug and play.

• Q: Does it have delay unlock function?

  A: Yes. It unlocks with a short delay after cycle ends for safety.

• Q: How long is the warranty?

  A: We provide 12 months warranty.

• Q: Can I use it to replace old 6601ER series locks?

  A: Yes, it is fully compatible with related equivalent models.

• Q: Is it waterproof and moisture-proof?

  A: Yes, sealed plastic housing adapts to humid working environment.

Note

• Cut off power before installation.
• Do not force the connector to avoid damage.
• Do not over-tighten the screws.
