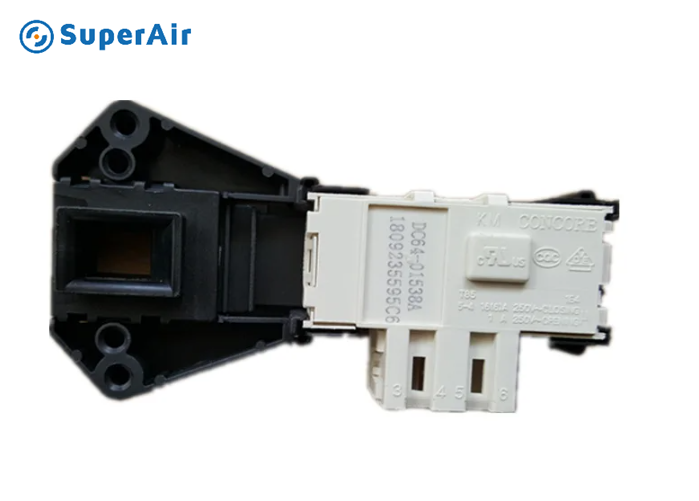

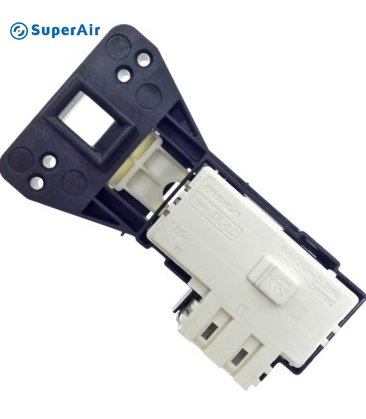

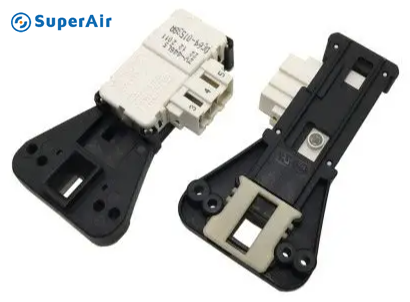

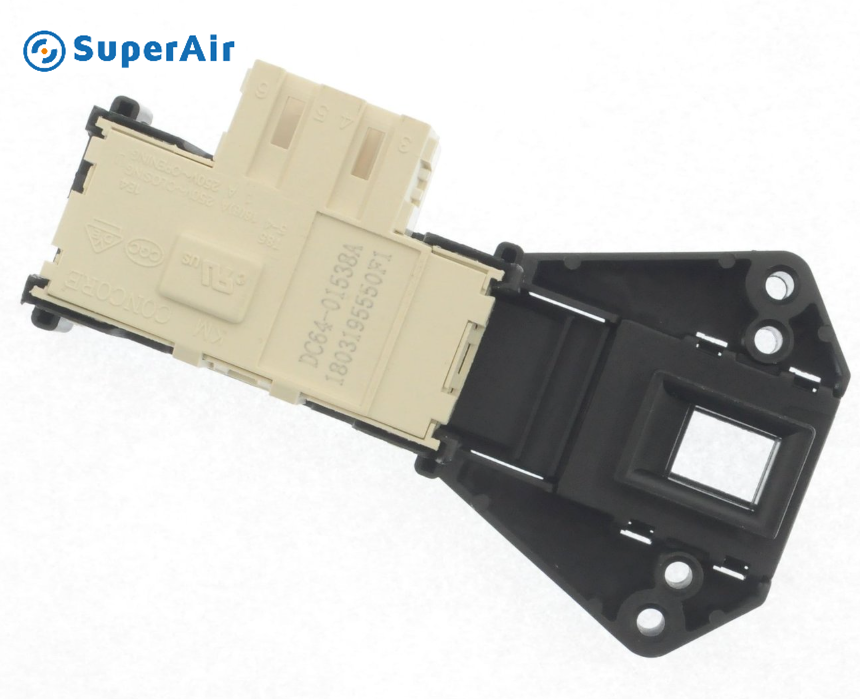

Washing Machine Door Lock DC64-01538A

Overview

DC64-01538A is the original electronic door lock (door interlock switch) for Samsung’s drum washing machine. The replacement model is ZV-446L5 / ZV446L5.

Main Features

• Original Samsung model, model number DC64-01538A, compatible with ZV-446L5, suitable for most Samsung drum washing machines
• 3-pin interface, rated 250V, standard 6.3mm quick connector, wiring installation is convenient
• Integrated door control and locking, automatic door locking during operation, the machine cannot start if the door is not closed
• Installation hole spacing 43mm, universal installation position, easy to disassemble and assemble, suitable for multiple WF/WD series models

Installation

• Remove the steel wire retaining spring on the outer side of the washing machine door gasket, pry open the edge of the gasket a little, and expose the door lock.
• Unplug the 3-pin wiring harness plug on the door lock.
• Remove the 2 screws that fix the door lock, and take off the old door lock.
• Install the new door lock at the correct position, and tighten the two fixing screws.
• Insert the wiring harness plug back, reset the gasket and secure the retaining spring.
• Close the door and power it on. Test the door opening and closing, and the normal operation of the entire machine.

Product Details

• Model: DC64-01538A (also written as DC6401538A), alternative model ZV-446L5 / ZV446L5.
• Dimensions: Approximately 95.5 × 51.5 × 21.9 mm, weight approximately 37–88g.
• Installation dimensions: Double-hole fixed, hole spacing 43mm; black base + white electrical components.
• Electrical interface: 3-pin (3/4/5 terminals), 6.3mm AMP quick connector.
• Voltage / Current: 220–250V AC; closed 16(6)A, open 1A.
• Power: Normal operation approximately 2–3W (heating tongue type).
• Manufacture SuperAir

Specifications

• Compatible models: Samsung WF/WD full series rollers (including Ecobubble); also some Ardo, Indesit, etc.
• Hot-selling regions: China, Europe (Spain, Germany, France), Australia, Southeast Asia, Middle East.
• Life expectancy: Normal 3–5 years
• Warranty: Warranty for 1 year

FAQs

Note

• Please disconnect the power supply completely before installation to avoid electric shock.
• Check the plug and mounting hole position carefully to ensure correct fitting.
• Do not use this part beyond its rated voltage to prevent damage or safety hazards.
• This accessory is only for specified front load washing machines, do not use on incompatible models.
