Washing machine door lock EBF49827801/7803

Overview

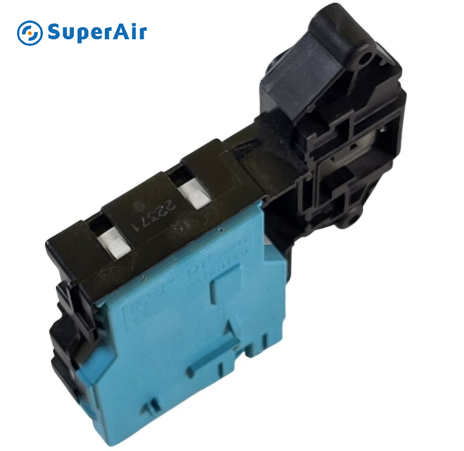

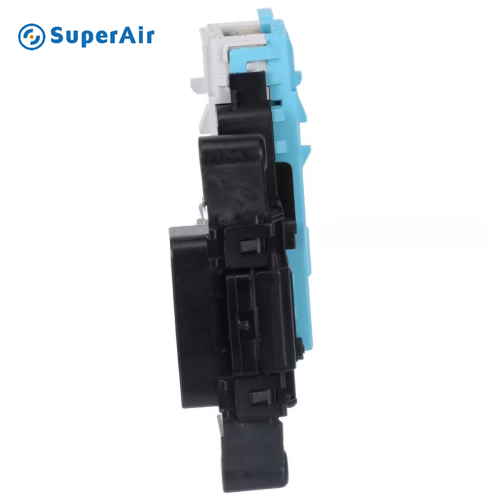

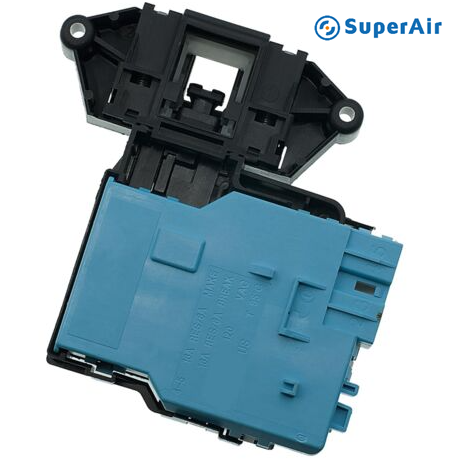

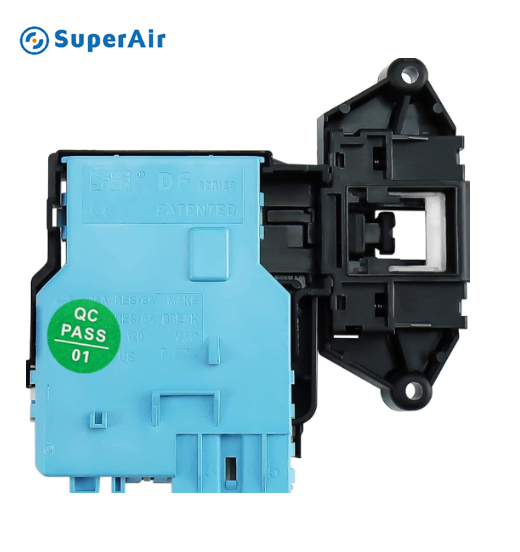

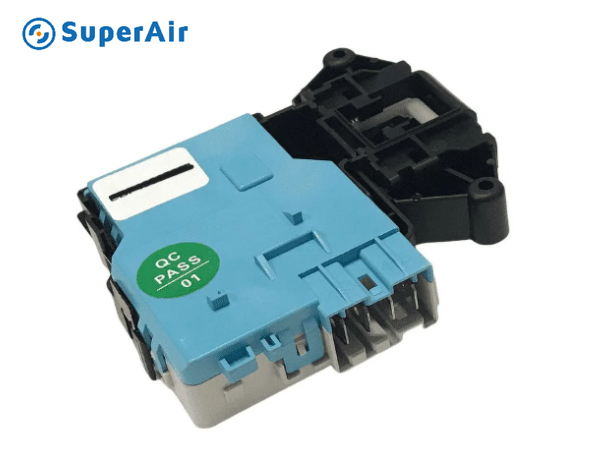

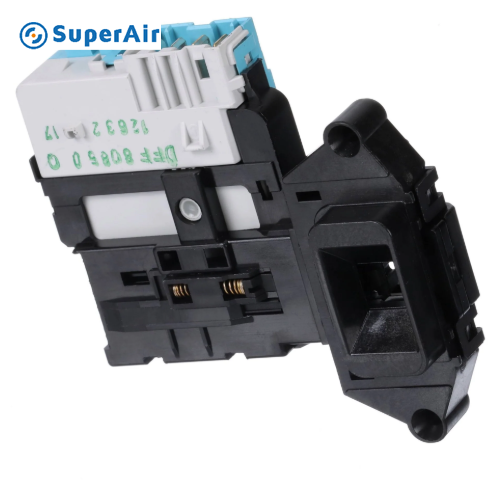

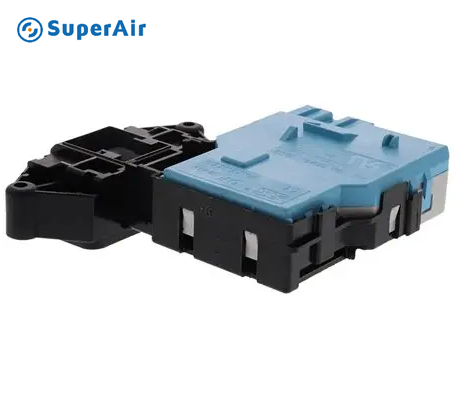

EBF4982780 (Common: EBF49827801 / 7803) is an OEM electronic door lock (interlock switch) for LG front‑loading washing machines, also compatible with select Kenmore models. It is a 4‑pin thermal delay lock that ensures safe operation by securing the door during wash and spin cycles.

Main Features

• Thermal delay lock structure: It adopts the thermal control principle of bimetallic strips. When powered on, it heats up and bends to lock the door. After power off, it needs a delay for cooling before it can be unlocked to prevent water leakage during the unlocking process.
• 4-pin electrical interface: Equipped with 4 6.3mm quick connectors, with a rated voltage of 250V and a current of 16 (6) A. It is compatible with various models of LG drum machines and can be used with old parts such as 6601ER1004D.
• Compact and durable design: Dimensions approximately 64×81mm, reinforced plastic casing + metal contacts, moisture-proof and shock-resistant, suitable for humid laundry environments.

Installation

• Power outage. Remove the door seal and the retaining ring, take out the old door lock and unplug the wiring harness.
• Connect the plug, secure the screws of the new door lock.
• Put back the door seal and the retaining ring.
• Power on and test the door lock function.

Product Details

• Original model EBF49827803 (commonly used), alternative codes 6601ER1004D, AGF69478145
• DimensionsApproximately 64×81mm (width × height), thickness 25mm
• Electrical specifications 250V, 16 (6) A, 4-pin 6.3mm quick connector terminal
• Applicable models LG drum washing machines (part of WM/WD/F series)
• Manufacture SuperAir

Specifications

• Material: Flame-retardant engineering plastic casing, copper conductive contacts
• Service life: Approximately 3-5 years under normal use
• Guarantee: 12-month warranty
• Unlock delay: Approximately 2 minutes after power loss

FAQs

Note

• Cut off power supply completely before installation to avoid electric shock.
• Do not over-tighten mounting screws, or the plastic housing may crack.
• Keep the connector dry to prevent poor contact or circuit failure.
