Washing Machine Drain Pump EAU64082901

Overview

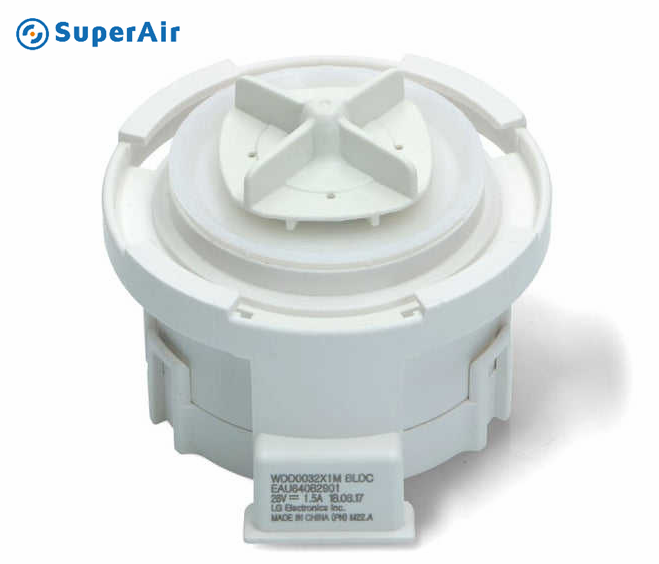

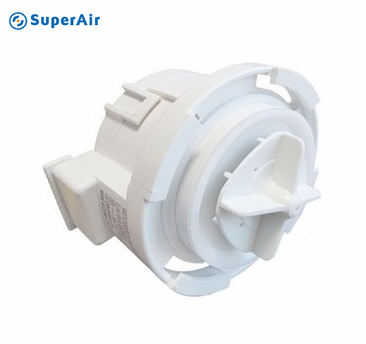

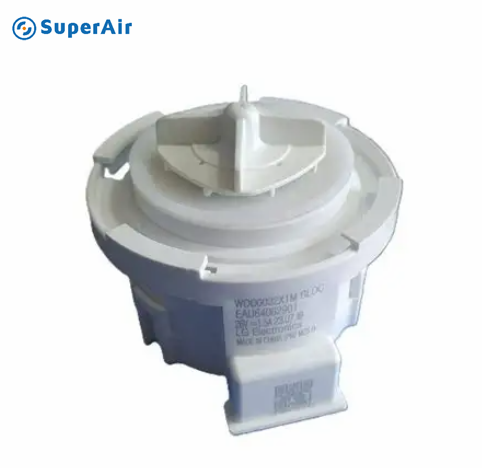

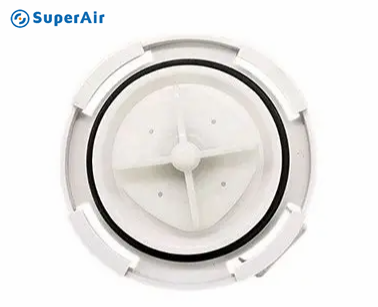

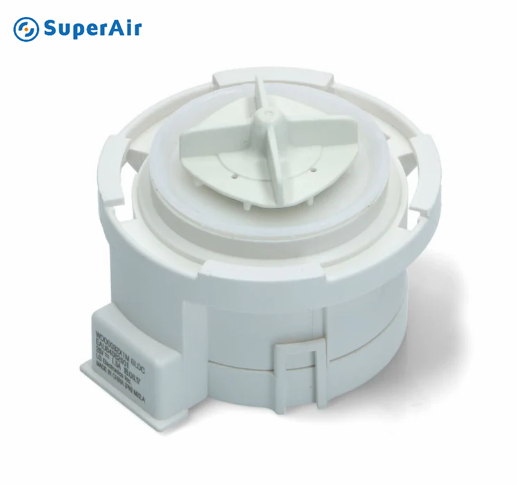

EAU64082901 is a dedicated DC26V brushless DC drainage pump for LG washing machines. It is an original factory universal part, compatible with multiple LG and similar models. This pump has a power of approximately 45W and is connected with 3-pin wiring and sealed with a flange. It often resolves problems such as no drainage, slow drainage, and abnormal running sounds in washing machines. Before replacement, it is necessary to cut off the power supply and drain the water. The disassembly and assembly are simple, and it is a commonly used repair part.

Main Features

• The DC26V brushless DC motor is adopted, featuring low operating noise and long service life.
• Standard 3-pin wiring terminals, plug-and-play installation, with strong adaptability.
• The flange structure is combined with a sealing gasket, providing excellent waterproof and leak-proof performance.
• The rated power is approximately 45W, and the drainage power is stable.

Installation

• Disconnect the power supply of the washing machine, open the bottom drainage port, and drain out the remaining water.
• Remove the bottom guard plate of the machine, unplug the 3-pin connection line of the drainage pump.
• Loosen the fixing screws/clip, remove the old pump body.
• Install the new pump in the correct position, ensuring that the sealing gasket is properly in place.
• Connect the wiring harness, restore the guard plate, and power on for a trial run to check for any water leakage or abnormal sounds.

Product Details

• Model: EAU64082901.
• Type: BLDC brushless DC drainage pump (for LG washing machine with drum) .
• Voltage: DC 26V.
• Current / Power: 1.5A / 45W.

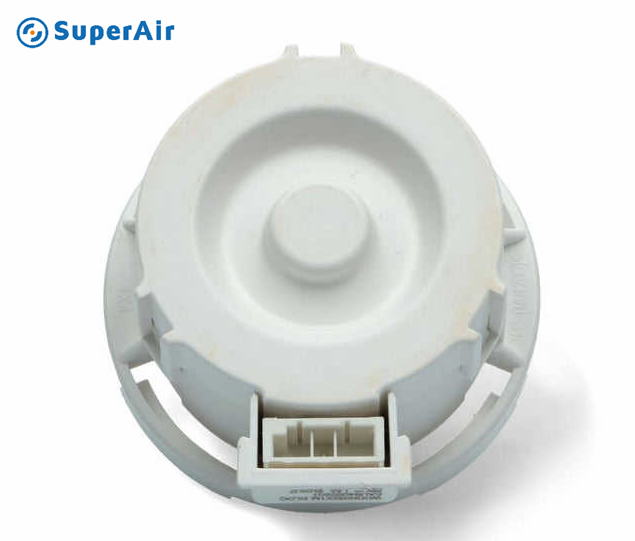

• Interface: 3-pin plug, flange installation with sealing rubber ring.
• Manufacture: SuperAir

Specifications

• Material: Engineering plastic casing + copper wire motor, corrosion-resistant and waterproof.
• Weight: Approximately 300g.
• Hot-selling regions: China, the United States, Europe, South America.
• Service life: 5–7 years.
• Warranty period: 1-year warranty.

FAQs

Note

• Before installation, make sure to cut off the power supply and drain all the water inside the machine to avoid electric shock and water leakage.
• During installation, ensure that the sealing gasket is fully in contact to prevent water leakage during use.
• Regularly clean the debris inside the pump body to avoid foreign objects getting stuck and causing damage to the pump.
• This model is only compatible with DC26V models. Do not use accessories of other voltages.
