Washing machine Drain Pump S3026

Overview

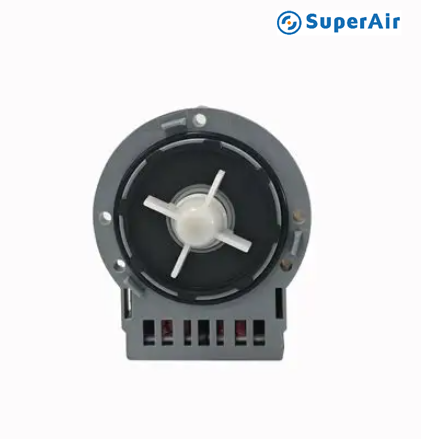

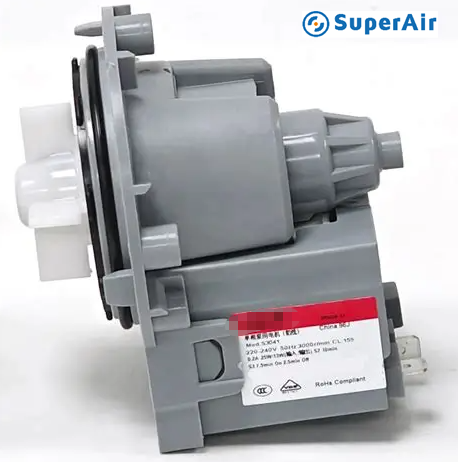

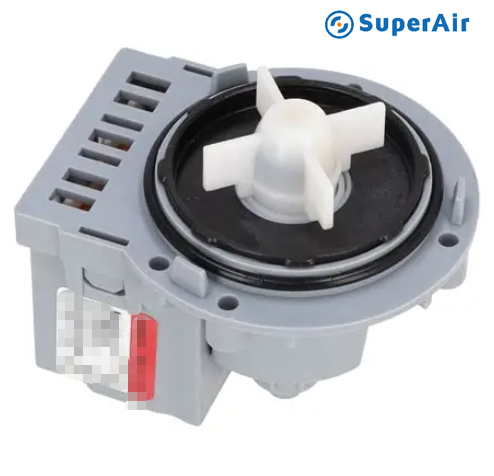

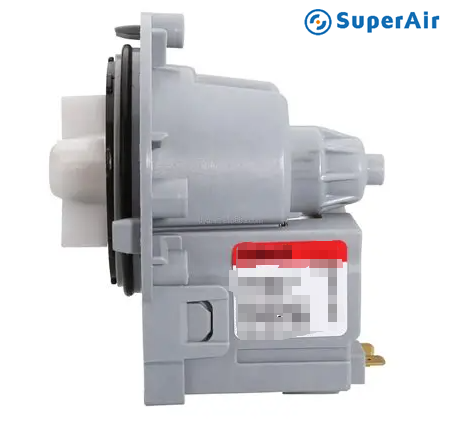

ASKOLL S3026 is a universal permanent magnet drainage pump for household appliances. It is suitable for top-loading washing machines and dishwashers, and is compatible with 220-240V mains power. This pump has low power consumption and operates quietly. The inlet and outlet interface specifications are universal, making it a mainstream accessory on the market.

Main Features

• Compatible with 220-240V/50Hz mains power supply, with low power consumption and energy saving during operation
• Stable water output flow, meeting the discharge height standards, and excellent drainage efficiency
• Equipped with a filter screen structure, effectively blocking impurities and preventing clogging
• Low operating noise, with good quiet performance

Installation

• First, cut off the power and water supply. Remove the old pump, disconnect the terminals, and loosen the inlet and outlet pipes.
• Align the holes and fix the new pump with screws. Connect the inlet and outlet pipes and secure the clamps.
• Insert the terminals back in place. Confirm that the wiring is stable. Test the drainage to ensure it is normal and there is no water leakage or abnormal noise.

Product Details

• Model: ASKOLL S3026 (Permanent Magnet Drainage Pump)
• Voltage / Frequency: 220–240V / 50Hz (European / Chinese standards)
• Power / Current: Input 25W, Output 13W; Rated Current 0.22A
• Speed: Approximately 3000 rpm
• Flow / Head: Flow ≈ 20 L/min, Head ≥ 1.0 m
• Interface Size: Inlet Ø34 mm, Outlet Ø22–23 mm
• Manufacture: SuperAir

Specifications

• Insulation / Protection: Class F insulation, IPX4 waterproof
• Suitable for popular regions: China, Europe, Southeast Asia sales volume
• Design Life: Generally available for 3-5 years for household use
• Warranty Period: 12 months

FAQs

Note

• Cut off power and water supply before installation to ensure safety.
• Keep the built-in filter clean regularly to avoid blockage and poor drainage.
• Check pipe connections tightly after installation to prevent water leakage.
• Do not use the pump beyond its rated voltage to avoid damage.
