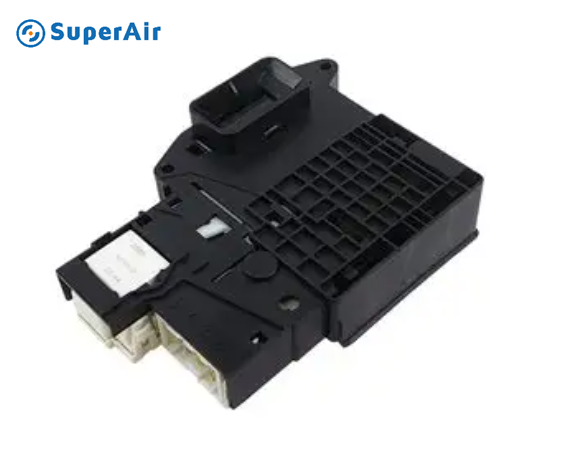

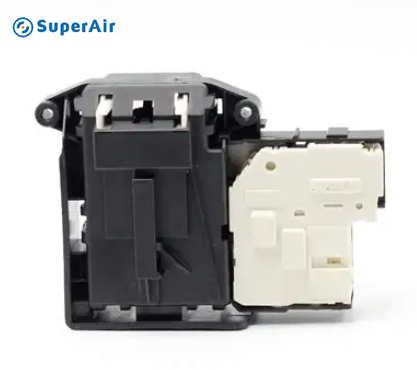

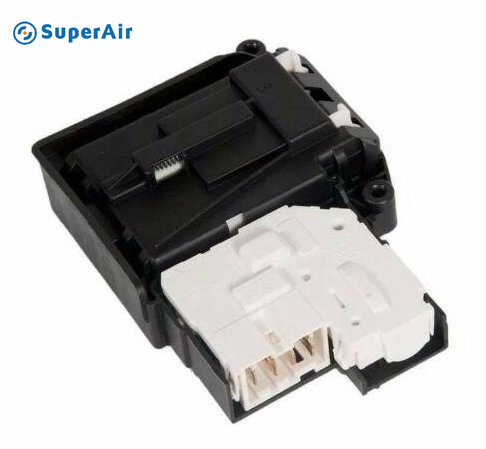

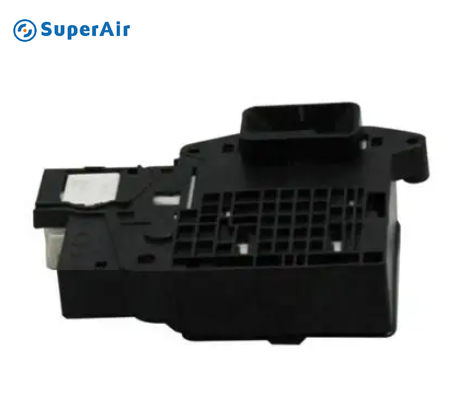

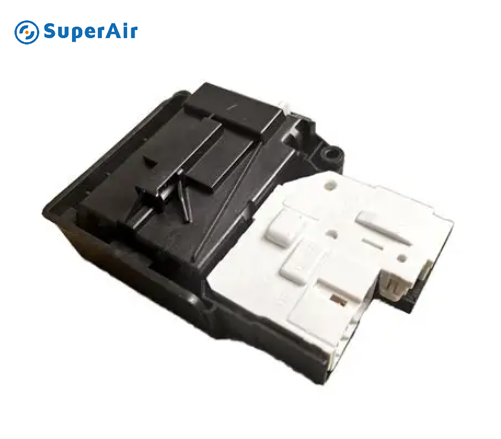

Washing Machine Electronic Door Lock EBF61315801

Overview

EBF61315801 is the original electronic door lock (door switch) for LG’s drum washing machine. It operates on 220V and has a 4-pin interface. It features delayed unlocking and is used to lock the door during the washing process to prevent accidental opening and water leakage.

Main Features

• Four-terminal electrical interface, strong load capacity: 4 contact design, supporting AC 220–240V, 50/60Hz, switch current 16 (6) A, compatible with mainstream household voltages, stable and reliable.
• Micro-delay safety lock, anti-misoperation and anti-leakage: Throughout the washing process, the door is forcibly locked, with a delay unlock function to prevent accidental door opening during operation, which could lead to water leakage or safety accidents.
• Strengthened structure + waterproof and dustproof, durable and sturdy: High-strength engineering plastic housing, waterproof sealing design, resistant to moisture and frequent switching, long service life.

Installation

• Power failure and water cut-off. Remove the door gasket snap.
• Remove the old door lock and disconnect the wires.
• Connect the new door lock wiring and secure it in place.
• Restore the door gasket and snap.
• Power on and test the machine. Confirm that the door lock is functioning properly.

Product Details

• Model: EBF61315801 (OEM original LG drum washing machine door lock)
• Material: High-strength flame-retardant engineering plastic, black and white color, waterproof and dustproof structure
• Voltage / Frequency: AC 220–240V, 50/60Hz, compatible with most household voltages worldwide
• Current Specification: 16 (6) A, switch contact has strong load capacity and is not prone to burning out
• Terminal Interface: 4-pin (4 terminals) design, plug-and-play, wiring is clear and not prone to errors
• Manufacture: SuperAir

Specifications

• Size: Approximately 67×78 mm; installation hole spacing approximately 60 mm,
• Function Type: Micro-delay safety lock, delays unlocking after program ends, prevents scalding and leakage
• Compatibility: Compatible with multiple LG drum models (such as F84C40WHS, F14J82IXS, WD62J6WY1W, etc.)
• Guarantee and Lifespan: 1-year warranty; switch has a long lifespan, resistant to moisture and frequent opening and closing

FAQs

Note

• Disconnect power and shut off water supply before installation to avoid electric shock and water leakage.
• Do not pull the wires forcibly; ensure the connector is fully plugged in.
• Test the door lock after installation. Stop use right away if any malfunction occurs.
