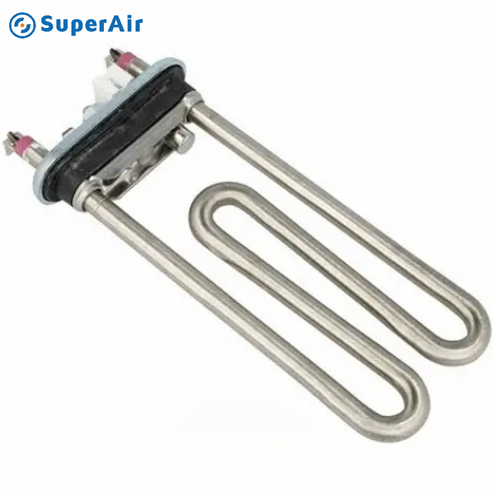

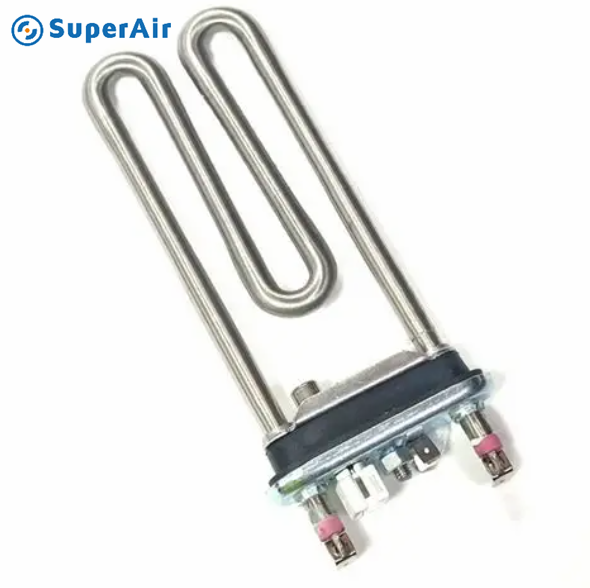

Washing Machine Heating Tube 0024000279C

Overview

This heating tube operates at 230V/1800W and is equipped with an internal NTC probe. The 279C/D/E specifications are interchangeable and compatible, suitable for use with Haier and many other brands of washing machines in Europe. With a large inventory of the entire product, there is a strong demand for global repair and replacement services, making it a long-lasting best-selling item in the appliance accessory market.

Main Features

• Rated 230V/1800W, integrated NTC temperature sensor, equipped with temperature control and anti-dry-burn protection
• The three models (0024000279C/D/E) have the same size and can be directly interchanged and replaced
• Stainless steel heating tube + rubber flange base, with durable sealing and convenient disassembly and assembly

Installation

• Power off and drain water: Cut off the power supply of the washing machine, empty the remaining water in the drum, and tilt the body of the machine to facilitate bottom operation.
• Remove the guard plate: Remove the dust cover plate at the bottom of the machine, exposing the connection terminals of the heating tube flange.
• Unplug and dismantle: Remove the two power lines of the heating tube and the NTC sensor wiring bundle from the heating tube, and unscrew the flange fixing nut.
• Remove the old parts: Push out the old heating tube from the inner side of the drum, clean the scale and impurities in the installation slot.
• Fix and install the new parts: Place the new sealing ring flat and push it into the cavity, lock the flange nut to ensure no leakage of water.
• Restore the wiring: Reinsert the power lines of the heating tube and the temperature control probe, and reinstall the bottom cover.
• Test water: Power on and run the machine with hot water for cleaning, check for no water leakage at the interface and normal temperature rise.

Product Details

• Product model: 0024000279C, compatible with 279D and 279E for interchangeability
• Rated voltage: AC230V, conforms to the mainstream power supply standard in the European Union
• Rated power: 1800W, with stable heating speed
• Included accessories: Integrated NTC temperature sensing probe
• Main body material: Stainless steel heating tube + temperature-resistant rubber sealing gasket
• Manufacture: SuperAir

Specifications

• Main sales regions: Western Europe, Eastern Europe, Russia, Middle East and North Africa
• Normal service life: 3-5 years for normal household use
• Factory warranty: Factory warranty for 12 months
• Compatible models: Haier, Candy, Indesit, Ariston drum washing machines
• Installation structure: Flange nut fixed type, direct installation without drilling holes

FAQs

Note

• Before installation, the power supply and water supply must be cut off, and the accumulated water in the bucket should be drained through the emergency drainage pipe to prevent electric shock or water leakage.
• During installation, the interface markings must be aligned. It is strictly prohibited to connect the wrong electrical plugs; otherwise, the pump body motor may be burned out.
• After replacement, conduct a single drainage test run first to confirm that there is no water leakage or abnormal sounds before normal use.
• Regularly clean the filter chamber to prevent wire shavings and debris from blocking the pump impeller, thereby extending the service life.
