Washing Machine Heating Tube DC47-00033A

Overview

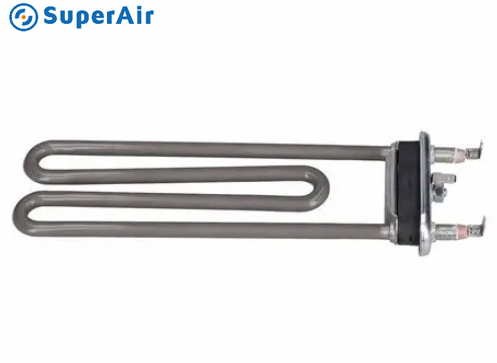

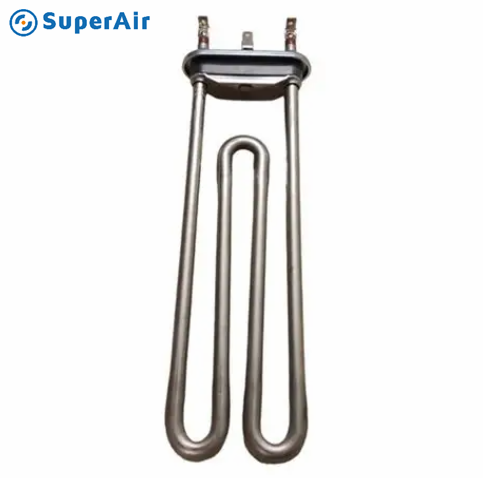

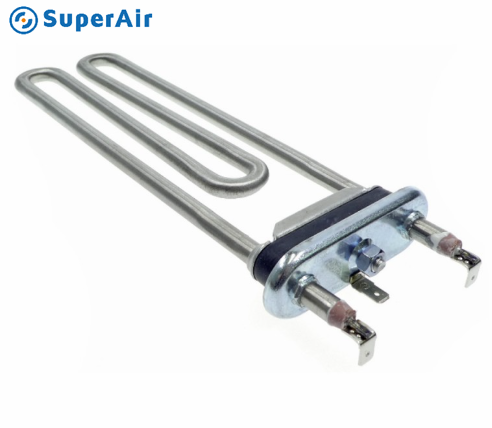

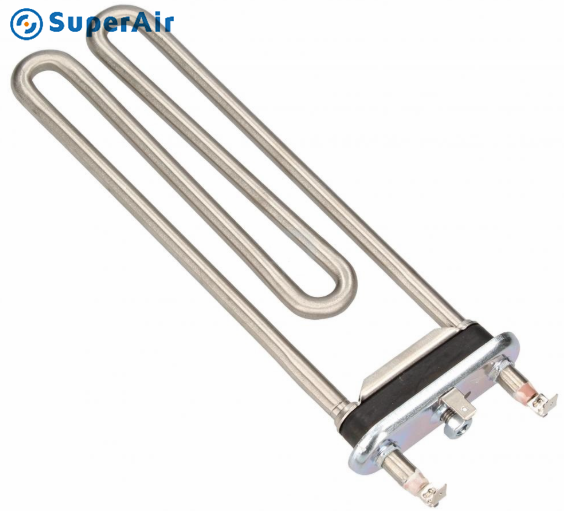

DC47-00033A is a heating tube for Samsung drum washing machine with 230V/2000W power, equipped with dual overheat protectors and sealing gaskets. It is mainly used in Samsung WD, WW, and WF series models.

Main Features

• Rated 230V/2000W power, Samsung original flange-type heating tube
• Built-in dual overheat temperature control protection, automatic power-off at high temperature

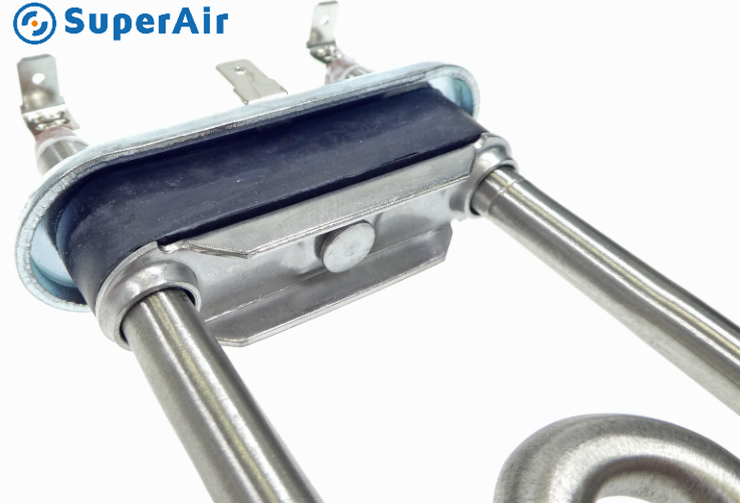

• Equipped with original sealing rubber pads, preventing water leakage during installation
• Stainless steel tube body resistant to scale corrosion, suitable for multiple series of Samsung drum types

Installation

• Turn off the power of the entire machine, drain the remaining water in the bucket, and remove the maintenance cover on the back of the washing machine.
• Unplug the terminals at both ends of the heating tube, remove the flange fixing screws.
• Pull out the old heating tube, clean the scale and residue in the installation slot.
• Install the new part with the sealing gasket in place, lock the fixing screws.
• Restore the wiring, reinstall the rear cover, test water to check for leaks, and test heating with power on.

Product Details

• Model: DC47-00033A, compatible with DC47-00033B/E, DC93-00281A/B, DC97-14827E.
• Voltage: 230V.
• Power: 2000W, fast heating, compatible with all models of Samsung drum.
• Material: 316L stainless steel pipe + ceramic insulation coating, resistant to scale and corrosion.
• Size: Total length 254mm, flange end 222mm, flange 81×28mm, sealing rubber pad 69×27mm.
• Connection: 6.3mm standard plug, with dual thermal protectors (overheating automatic power-off).
• Manufacture: SuperAir

Specifications

• Compatible models: Samsung WD, WF, WW series drums (such as WD10K6410OX, WW75J4213IW).
• Hot-selling regions: China, Australia, Europe, Southeast Asia.
• Service life: 3–5 years under normal water quality.
• Warranty period: 1 year.

FAQs

Note

• Cut off power supply completely before installation and drain residual water inside the tub.
• Clean scale and dirt from mounting groove to prevent water leakage after fitting the rubber gasket.
• Do not bend heating tube forcibly during installation to avoid internal heating wire damage.
• Test water tightness first before full-load operation after replacement.
