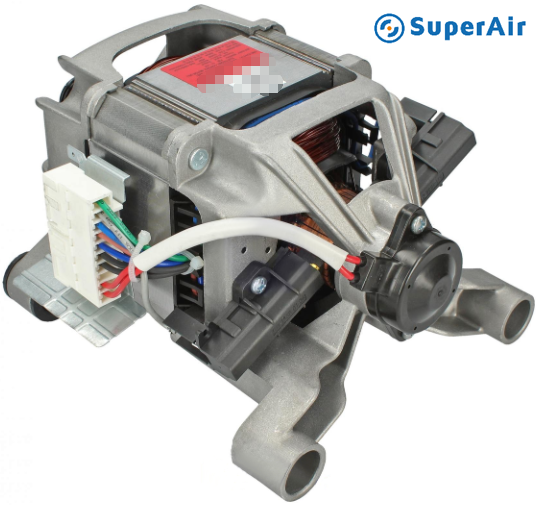

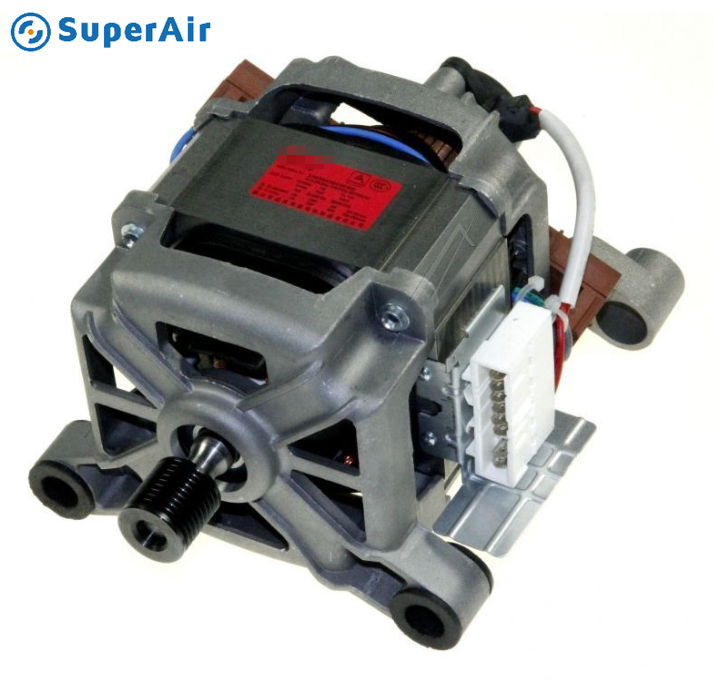

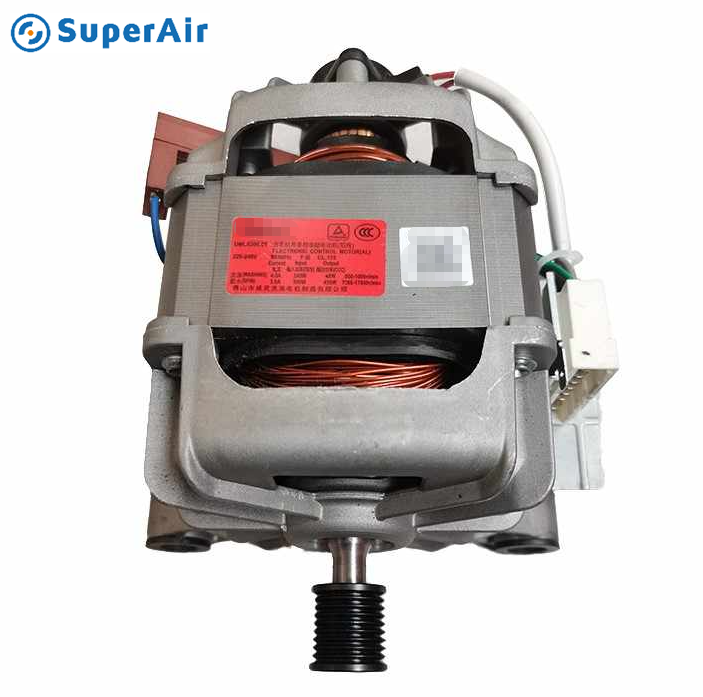

Washing machine motor DC31-00123F

Overview

DC31-000123F is the AC series-excited main motor of Samsung’s drum washing machine, responsible for the washing and dehydration processes. This motor is compatible with multiple models of the Samsung WF series.

Main Features

• Brushless AC motor, equipped with carbon brushes, capable of handling both washing and dehydration processes
• Standard voltage of 220-230V, high rotational speed, strong dehydration power
• Cast iron body, excellent heat dissipation and structural stability
• 9-pin interface, compatible with multiple models of Samsung drum washing machines
• The main wear parts are carbon brushes, making maintenance and replacement convenient

Installation

• Power off and water supply are cut off. Move the washing machine away, level the body, and remove the bottom protective panel.
• Unplug the 9-pin connection line of the motor, loosen the fixing bolts, and remove the old motor.
• Position and install the new motor, tighten the fixing screws, and install the shock-absorbing rubber pads.
• Plug in the wiring plug firmly, check that the wiring is not loose or misaligned.
• Reinstall the base plate, reset the washing machine, and conduct a power-on idle test to check for any abnormal sounds. Once there are no such sounds, the installation is complete.

Product Details

• Model: DC31-00123F, Internal model: UML5204.01.
• Type: AC series-excited motor (with carbon brushes), integrated washing and drying drive.
• Voltage/frequency: 220–230V AC, 50Hz (some versions compatible with 60Hz).
• Power/current: Washing approximately 200W, drying peak approximately 300W; rated current approximately 3A.
• Speed: Washing approximately 500–1000rpm, drying maximum ≈17,000rpm.
• Size/interface: Approximately 23×18×12cm; 9-pin dedicated plug, single output shaft.
• Manufacture: SuperAir

Specifications

• Material/structure: Cast iron casing, B-class insulation, with shock-absorbing rubber pads, good heat dissipation, stable structure.
• Compatible models: Samsung WF series drum (such as WF80F5E0N4W, WF1704YSW2, etc.).
• Hot-selling regions: China, Southeast Asia, Middle East, South America, Europe (Spain, Germany, etc.).
• Life expectancy: Normal household use 3-5 years.
• Warranty: 12 months.

FAQs

Note

• Cut off the power supply completely before installation to avoid electric shock.
• Check the wire connector firmly to prevent poor contact after assembly.
• Do not use the motor with unmatched washing machine models.
• Avoid long-term overload operation to extend service life.
