Washing Machine Three-head Water Inlet Valve DC62-00233C

Overview

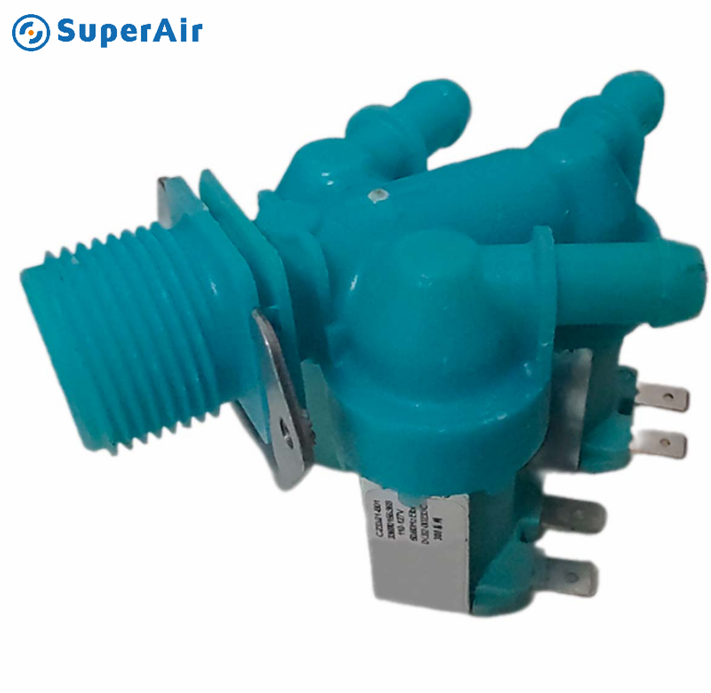

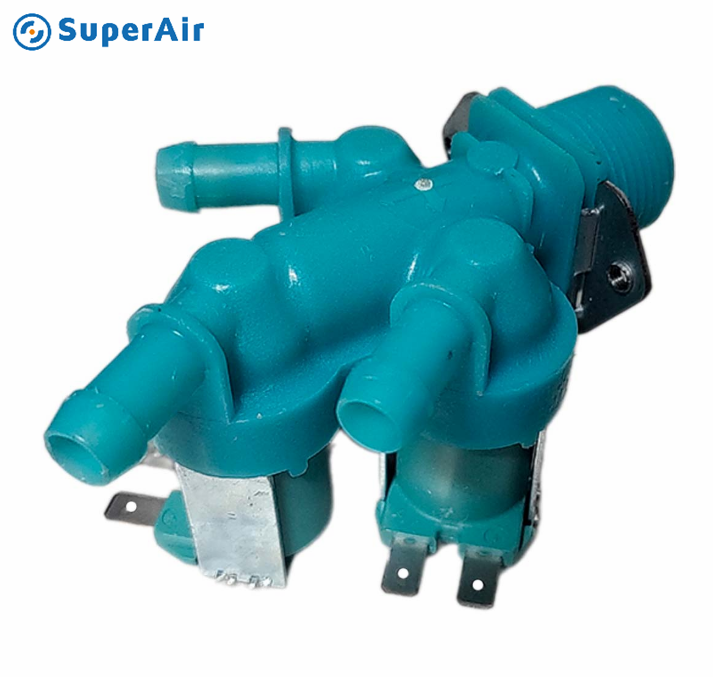

DC62-00233C is a dedicated three-head water inlet valve for Samsung washing machines, featuring a split coil structure with one inlet and three outlets. It comes in 220V and 110V voltage versions and can be interchanged with models of the same suffix series. It is mostly used in Samsung washing and drying combination machines, controlling the water supply for multiple water channels.

Main Features

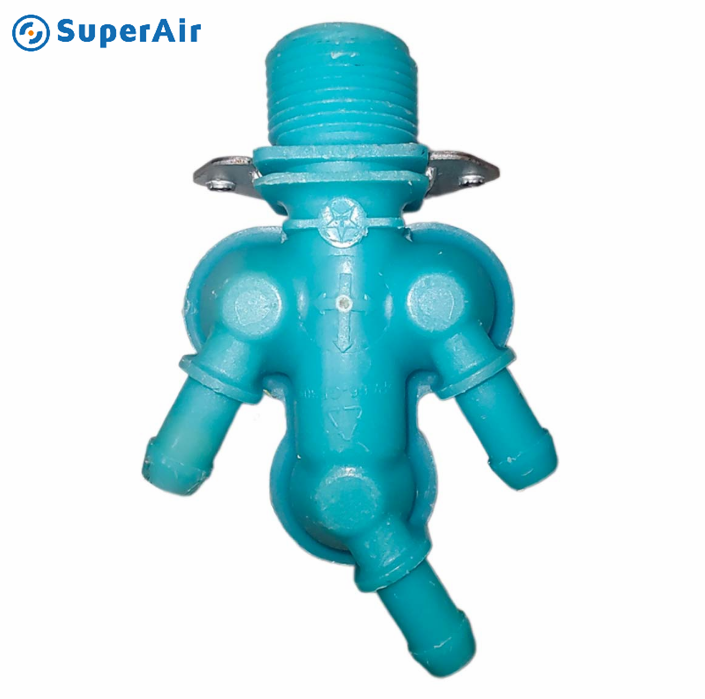

• One enters and exits through three paths, with water flowing out in three directions. The water supply is independently controlled by two coils.
• There are two voltage specifications: 220V and 110V.

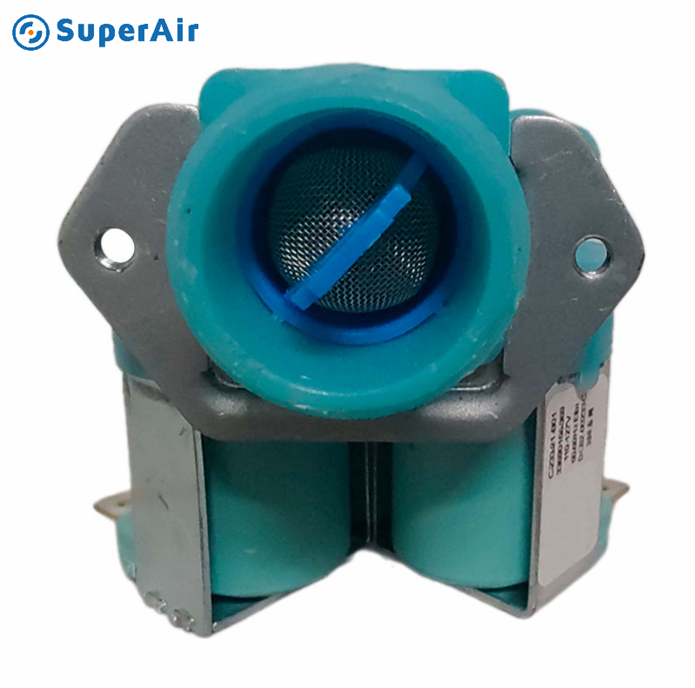

• The water inlet is equipped with 4 threaded connections and a detachable stainless steel filter screen.
• DC62 is compatible with multiple models of the same series and can be interchanged.
• It is equipped with a Samsung drum-type washing and drying machine by the original factory.

Installation

• Cut off the power and water supply. Unplug the power cord of the washing machine and close the water inlet valve of the tap.
• Remove the upper cover of the washing machine, unscrew the external water inlet pipe of the valve body, and remove the connection terminals of the two side coils.
• Remove the old water inlet valve, align the locking position and install the new DC62-00233C valve body.
• Restore the three water outlet pipes corresponding to the water outlets, and connect the coil plugs.
• Tighten the water inlet hose, run water and power on to test the water, and check that there is no water leakage from each pipe opening.

Product Details

• Model: DC62-00233C. Dimensions of this series B/D/H/K/J are universal and can be directly interchanged for replacement.
• Structural specifications: 1 inlet, 3 outlets for water supply, 4 external threaded water inlets, integrated fixed installation bracket.
• Voltage: Model C comes with a standard 110~127V/60Hz; Model B has 220~240V/50Hz, two industrial frequency versions.
• Power: Single coil power is approximately 6W, double coil totals 12W, AC electromagnetic drive.
• Manufacture: SuperAir

Specifications

• Material: Main body is made of temperature-resistant PP plastic + pure copper coil + detachable stainless steel water inlet filter.
• Hot-selling regions: North America, Latin America, Southeast Asia (110V); Europe, Middle East, the domestic market mainly promotes the 220V version.
• Service life: 5-8 years.
• Warranty: 12 months.
• Working water pressure: Applicable to 0.02~0.8MPa domestic water pressure, compatible with global household water supply standards.

FAQs

Note

• Before installation, make sure to cut off the water supply and the power supply of the entire machine to avoid water leakage and electric shock. The wiring must strictly follow the voltage specifications.
• The filter screen at the water inlet should be disassembled and cleaned regularly. If the screen gets clogged with sand, it may cause the water intake to slow down and the valve body to be damaged prematurely.
• When selecting the model, first check the marked voltage. The 110V and 220V valve bodies cannot be used interchangeably. Using the wrong voltage can easily burn out the coil.
• After installation, conduct water pressure testing. Ensure that the three water outlet hoses are properly plugged in to prevent the valve from detaching and causing water overflow during operation.
