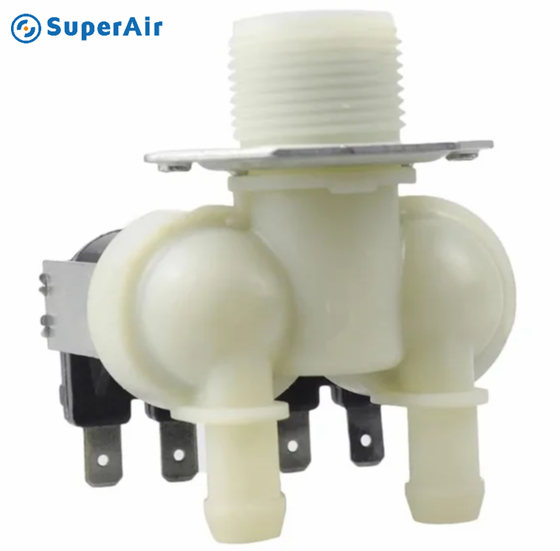

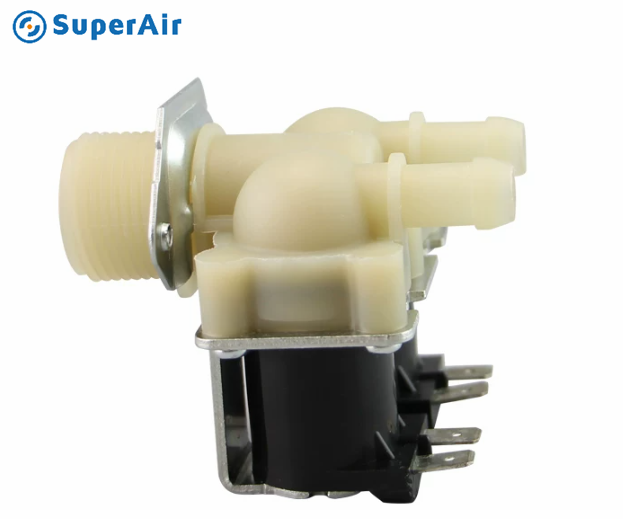

Washing Machine Water Inlet Valve FPS180A

Overview

The FPS180A double-head water inlet valve is a globally popular and widely used standard product for both new and replacement applications in drum washing machines. It has been exported to many countries in Europe, America, Australia, and Southeast Asia. The product has multiple safety certifications and is highly versatile in terms of specifications. It is not only an original component for major brands like Samsung and Midea, but also a frequently stocked spare part for overseas repairs.

Main Features

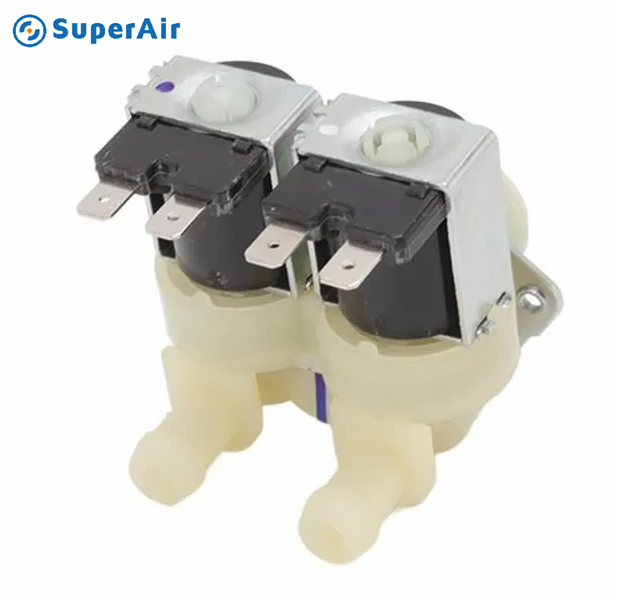

• The dual-inlet and dual-outlet split waterway design allows for independent water control by two coils, and is compatible with the dual-water-inlet structure of the drum.

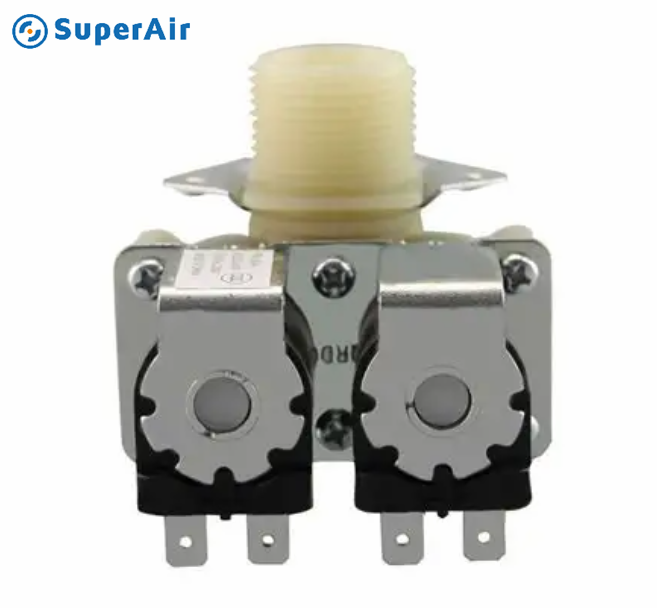

• Standard features include G3/4 inlet threads and Φ12 outlet interfaces, providing high versatility and ease of replacement.
• Multiple voltage options (110V/220V) are available, and it has obtained certifications from multiple countries such as CE and UL.

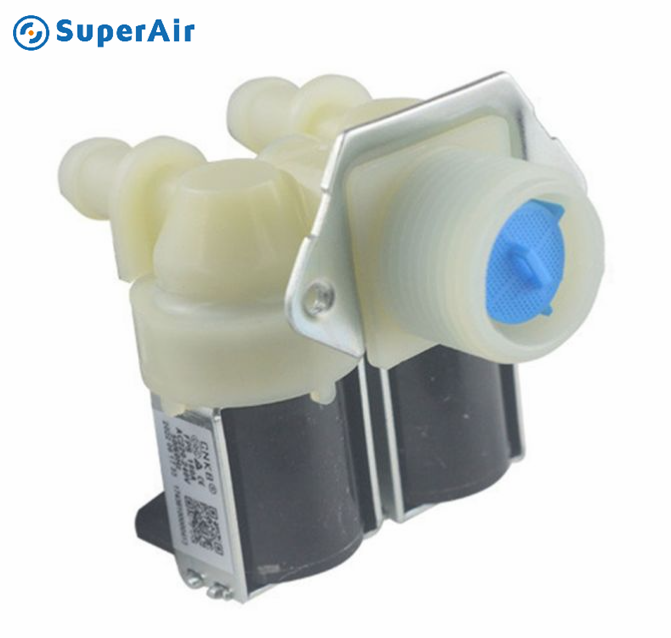

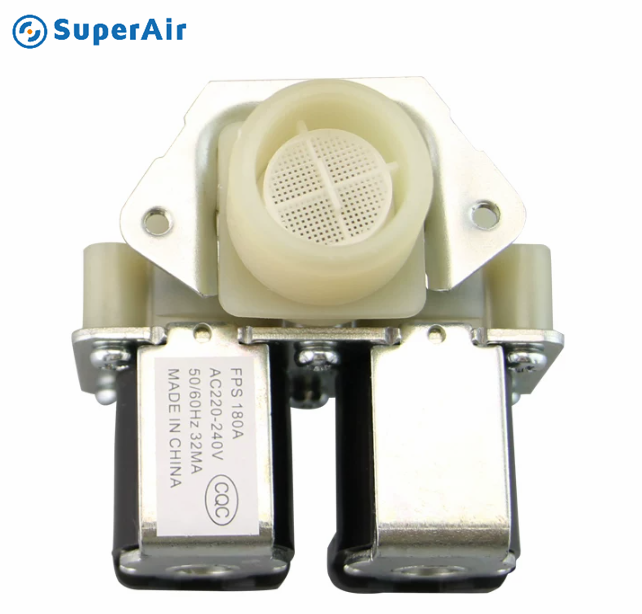

• The valve body is equipped with a pre-filter screen to prevent impurities from blocking the valve, and has a low failure rate and durability.

Installation

• Cut off the water supply to the washing machine, remove the power supply, and unscrew the water inlet hose of the machine body.
• Remove the old water inlet valve fixing clips/screws, and disconnect the electrical terminals at both ends.
• Fix the new FPS180A in place with the locking mechanism, and connect the water inlet to the tap.
• Insert the two water outlet hoses into the two water outlets of the valve body and secure them with the pipe clamps.
• Restore the wiring terminals to their original position, turn on the water and power supply, and test for water leakage and dripping.

Product Details

• Product Model: FPS180A (Kobo CNKB original one-in-two-out double-head water inlet valve)
• Interface Specifications: Water inlet G3/4 (6-threaded), dual water outlets Φ12mm, installation hole spacing 45mm
• Rated Voltage: Mainstream AC220V/110V 50/60Hz, optional DC24V DC model
• Coil Power: Single coil approximately 6W, total power of two coils 12W standard power consumption
• Pressure Resistance Range: Working water pressure 0.02~1.0MPa (0.2–10 kg water pressure)
• Manufacture SuperAir

Specifications

• Applicable Water Temperature: Water medium 0~60℃, suitable for normal temperature tap water
• Mechanical Life: Opening and closing durability ≥ 100,000 times, standard household use for 5–8 years
• Warranty Period: Factory original warranty 12 months, batch export stock warranty 1 year
• Hot-selling Regions: Europe, Australia, Southeast Asia, Middle East, North America (complete machine + maintenance and replacement)
• Safety Certification: CE, UL, TUV, CQC multiple country certifications, compliant for global export

FAQs

Note

• Cut off water supply and power supply before installation to avoid leakage and electric hazard.
• Check inlet filter regularly to clear impurities for stable water inflow.
• Confirm matching voltage before wiring to prevent coil burnout.
• Do not exceed max working water pressure to avoid valve body leaking.
