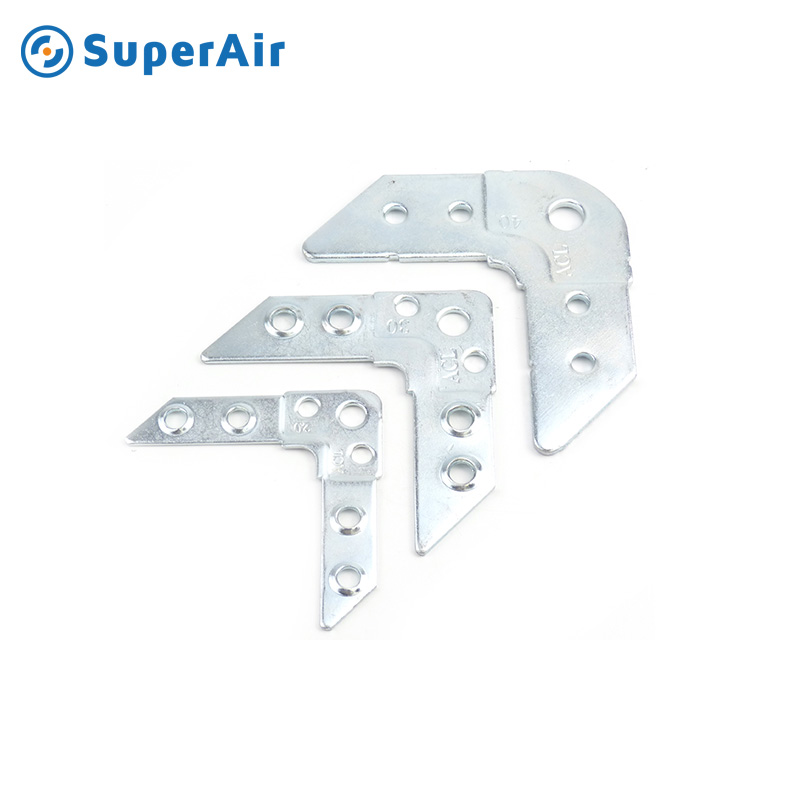

SuperAir Duct Profile and Corner

Overview

SuperAir Duct Profile and Corner components are crucial to designing secure and efficient air duct systems for HVAC. They deliver the essential frame and corner support needed for rectangular duct systems that ensure an airtight and stable installation. They are designed for commercial and residential installations The duct profiles and corners are designed to withstand different environmental conditions, while providing outstanding quality and durability. They ease the process of creating complex ductwork and focus on providing longevity and reliability.

Main Features

• Solid Structural Support designed to offer the strength and stability for HVAC systems.
• Precision Fit manufactured with high precision to warrant the tightest and most snug fit around all corners of ducts.
• Corrosion-resistant The materials used provide protection from corrosion and rust which extends the lifespan that ductwork.
• Simple Installation The profiles and corners are simple in reducing assembly time.
• Flexible Applications appropriate for HVAC systems in residential and commercial.

Installation

1. Readiness Check that your ducts are appropriately size and cleaned prior to assembly.

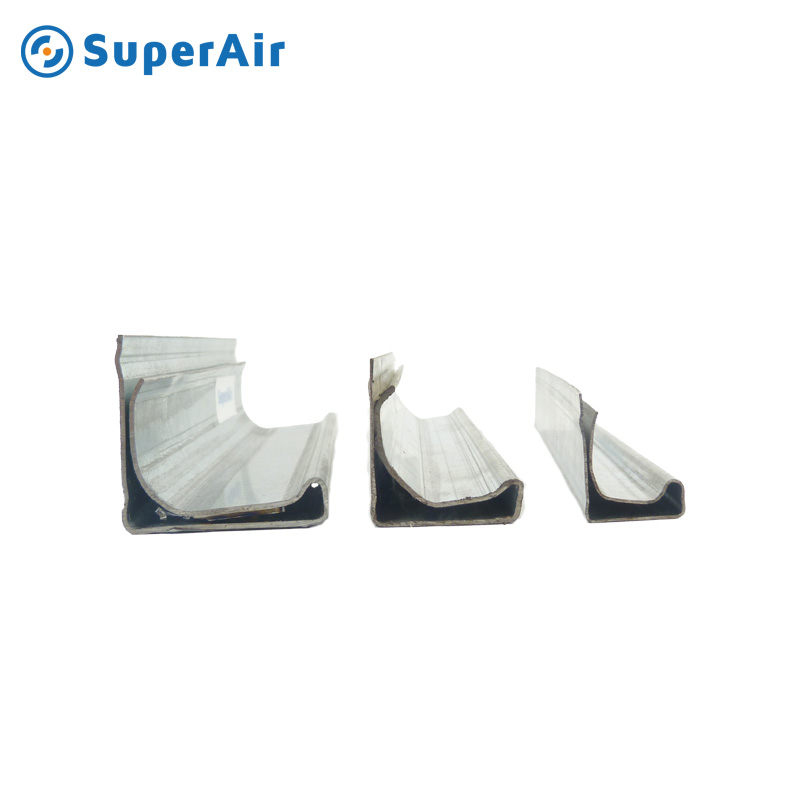

2. Join Profile to Duct Edges Securely attach the profile of ductwork onto the outer edge of the ductwork.
3. Add Corner Pieces The corner pieces in those duct profile at any needed junctions.
4. Connect the Assembly Use rivets or screws to warrant the corners and profiles are secure in their the correct position.
5. The Edges Need to be sealed Apply tape or duct sealant as required to warrant an airtight connection.

Product Details

• Dimensions of the Product Available in a variety of sizes to accommodate the dimensions of standard ducts.
• Item Model Number DP-20, DP-30, DC-HI20AB
• Date First Available Posted at the date of listing.
• Manufacture SuperAir

Product Description

SuperAir’s Duct Profile and Corner components are designed to improve the quality of the ductwork used in HVAC system.

• Item Type Duct Profile and Corner Set
• Material Steel Galvanized and aluminium
• Model DP-20, DP-30, DC-HI20AB
• Install Method The method of installation is screwing or rivets.
• Grade Residential, commercial, industrial
• How to Utilize Install the profile around the edges of the duct and place corner pieces in intersections for a secure installation.

Specifications

• Material Steel that has been galvanized or aluminium for resistance to corrosion
• Dimensions available for different dimensions of ducts, including 20mm, 30mm and 40mm profiles.
• Finish A rust-resistant coating that provides long-lasting durability under a variety of environmental conditions.
• Weight Easy to carry during installation
• Compatibility Suitable with the entire ductwork system that is rectangular.

FAQs

What is the function of corners and duct profiles?
These deliver structure support as well air-tight connections within rectangular HVAC duct systems.

Can I use these profiles as well as corners for residential as well as commercial HVAC systems?
Sure, the SuperAir duct profile and corners are made for commercial and residential applications.

What do I need to know? Install corners and duct profiles?
Attach the profiles to the edges of the duct, then put in the corner pieces and secure them using rivets or screws.

What are the materials that the corners and profiles are constructed from?
They are offered in galvanized steel and aluminium for increased durability and resistance to corrosion.

Are these components impervious to corrosion?
Yes, they’re protected by a corrosion-resistant coating to assure longevity in various situations.

Note

Check that the duct’s and corner dimensions are consistent with the duct’s dimensions to assure optimal performance. Be sure to check the installation procedure regularly to ensure airtightness and performance.

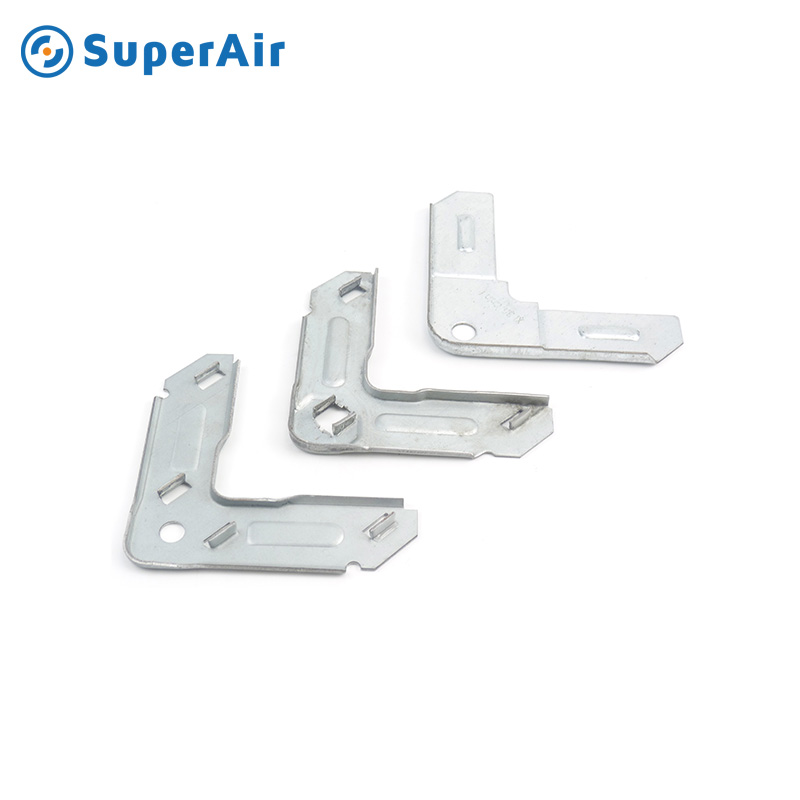

What is TDC/TDF profile?

TDC and TDF are roll-on connectors for rectangular duct systems. TDC stands for Transverse Duct Connection and TDF stands for Transverse Duct Flange.TDC and TDF can be used in place of Ductmate Flange for transverse connections in medium and high pressure rectangular duct systems.
